PE07.10-P-2711NAE Electrical Function Schematic For Smooth Running Control

PE07.10-P-2711NAE Electrical Function Schematic For Smooth Running Control
ENGINES 276 in MODEL 166

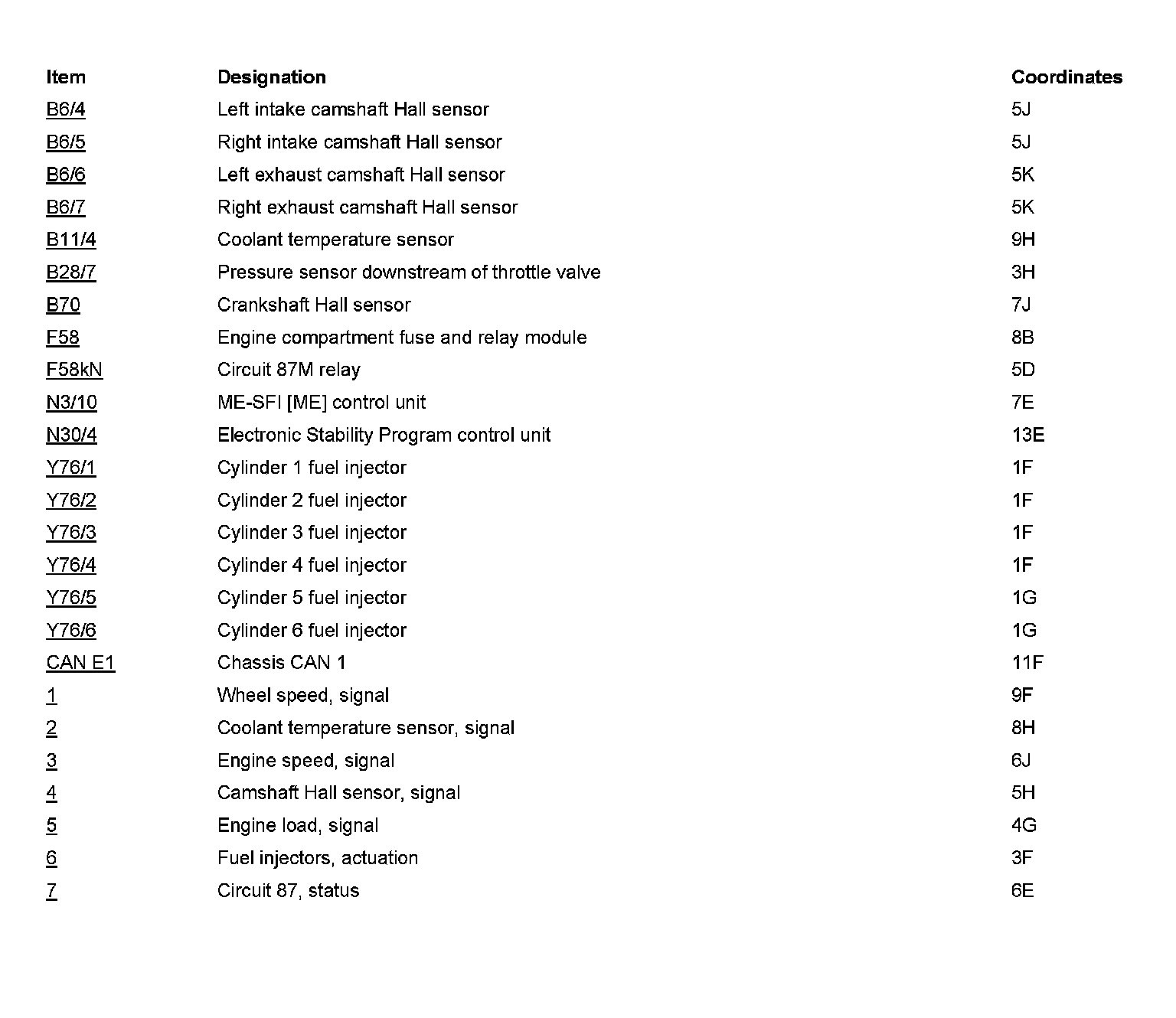

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
