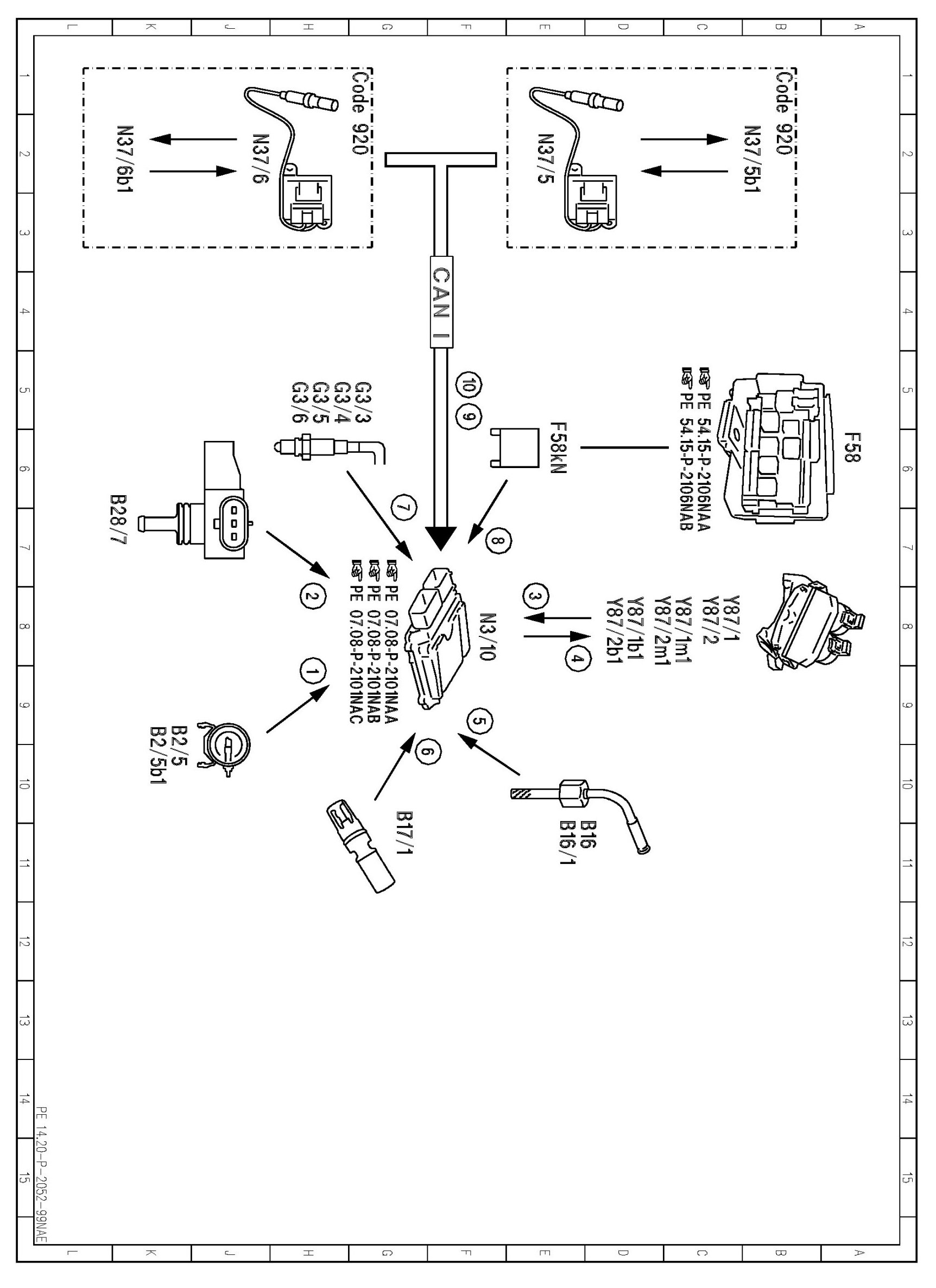

PE14.20-P-2052NAE Electrical Function Schematic For Exhaust Gas Recirculation

PE14.20-P-2052NAE Electrical Function Schematic For Exhaust Gas Recirculation
ENGINES 276 in MODEL 166


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
