AR67.30-D-2400H Remove/Install Glued Side Window




AR67.30-D-2400H Remove/Install Glued Side Window

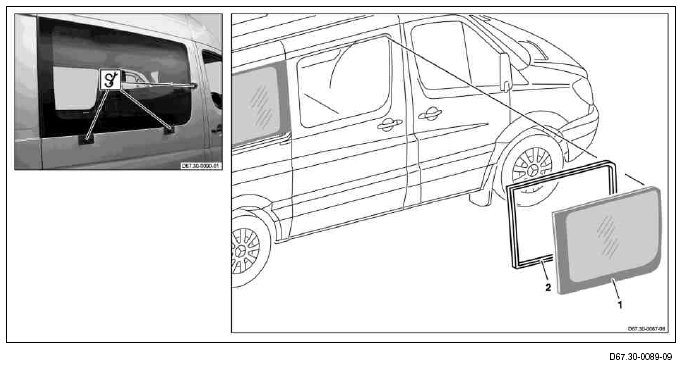

1 Side window
2 Frame seal
Spacer













000 589 86 63 00, Intermediate piece







906 589 06 63 00, Spacer
