AR67.20-D-5145H Remove/Install Rear Window




AR67.20-D-5145H Remove/Install rear window

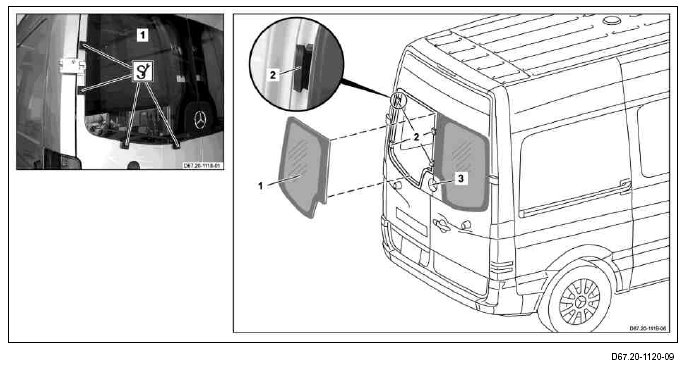

1 Rear window
2 Spacer blocks (6 mm)
3 Cover
Spacer













000 589 86 63 00, Intermediate piece







901 589 07 63 00, Spacer
