AR91.40-D-1030-03A Detach/Attach Seat Belt Guide

AR91.40-D-1030-03A Detach/Attach Seat Belt Guide

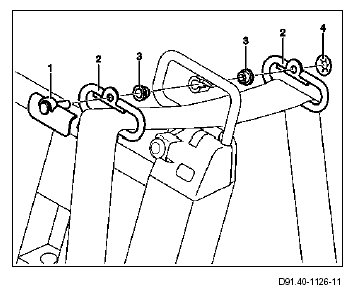

1. Remove clamping plate (4) from bearing pin (1).
Installation: Replace clamping plate (4).

2. Pull out bearing pin (1) and remove guide brackets (2) with bearing bushings (3) from backrest frame.
3. Install in the reverse order.
