AR91.40-D-1030-02A Detach/Attach Belt End Fitting

AR91.40-D-1030-02A Detach/Attach Belt End Fitting

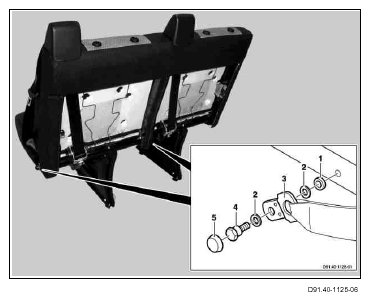

1. Remove cap (5) from screw/bolt (4).
2. Remove screws/bolts (4), and remove belt end fitting (3) with bearing washers (2) and shim (1).

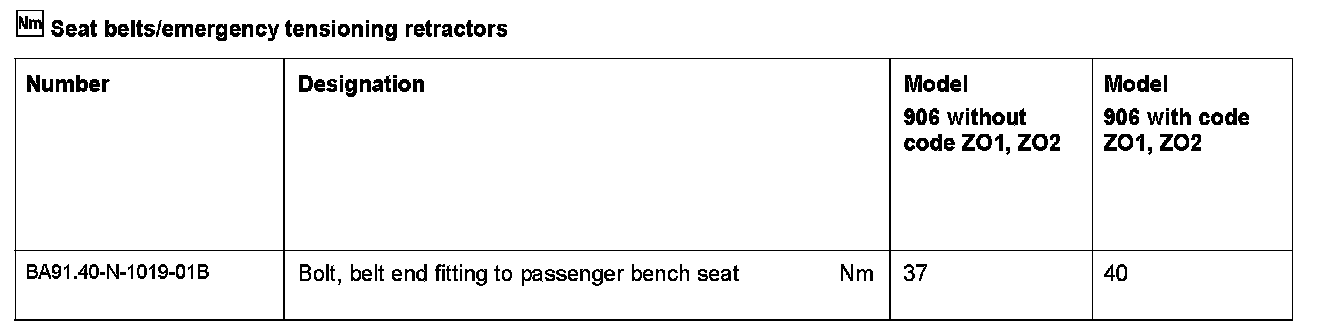

Installation: The bearing washers (2) must make contact with the belt end fitting (3) with the chamfered side.

3. Install in the reverse order.
