Seat Belt Buckle: Service and Repair

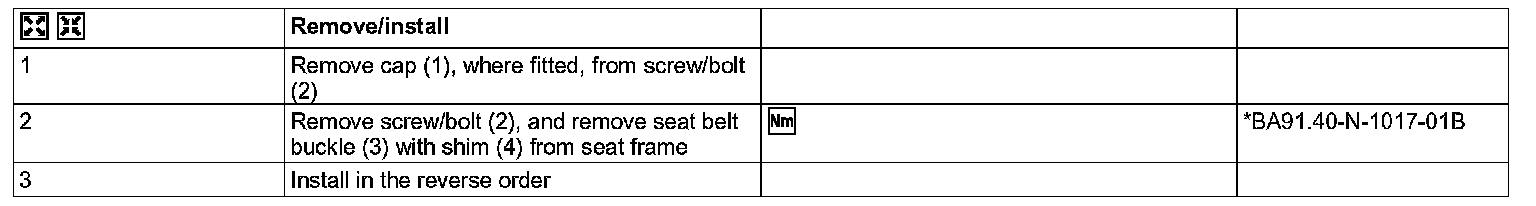

AR91.40-D-1517B Remove/Install Seat Belt Buckle

- Passenger bench seat







1 Cap

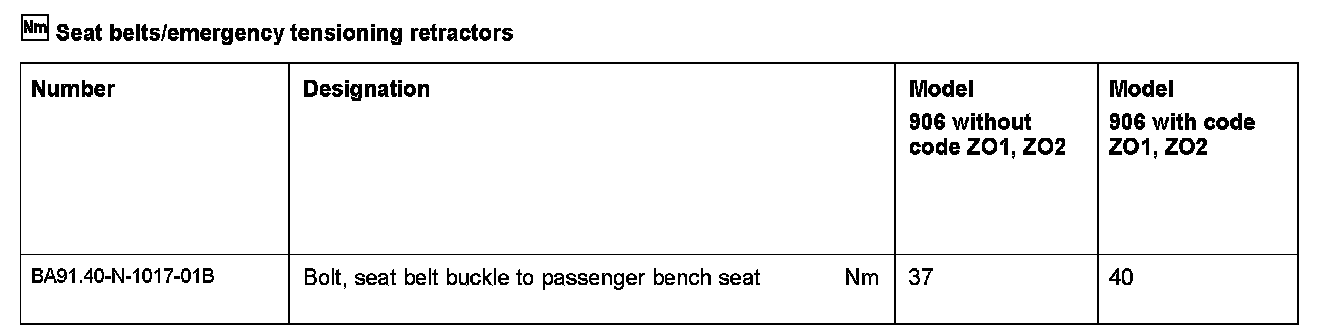

2 Screw
3 Seat belt buckle
4 Spacer washer
