SM14.40-D-0002-11S Remove/Install Cable Set For Adblue Container

SM14.40-D-0002-11S Remove/Install Cable Set For AdBlue Container

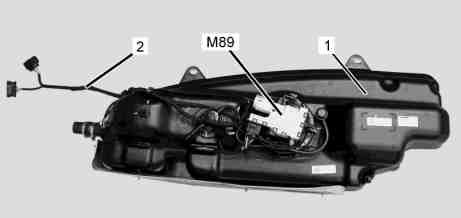

1 Detach electrical connector from AdBlue feed unit (M89).
2 Remove cable set (2) from AdBlue(R) container (1).
3 Install in the reverse order.
