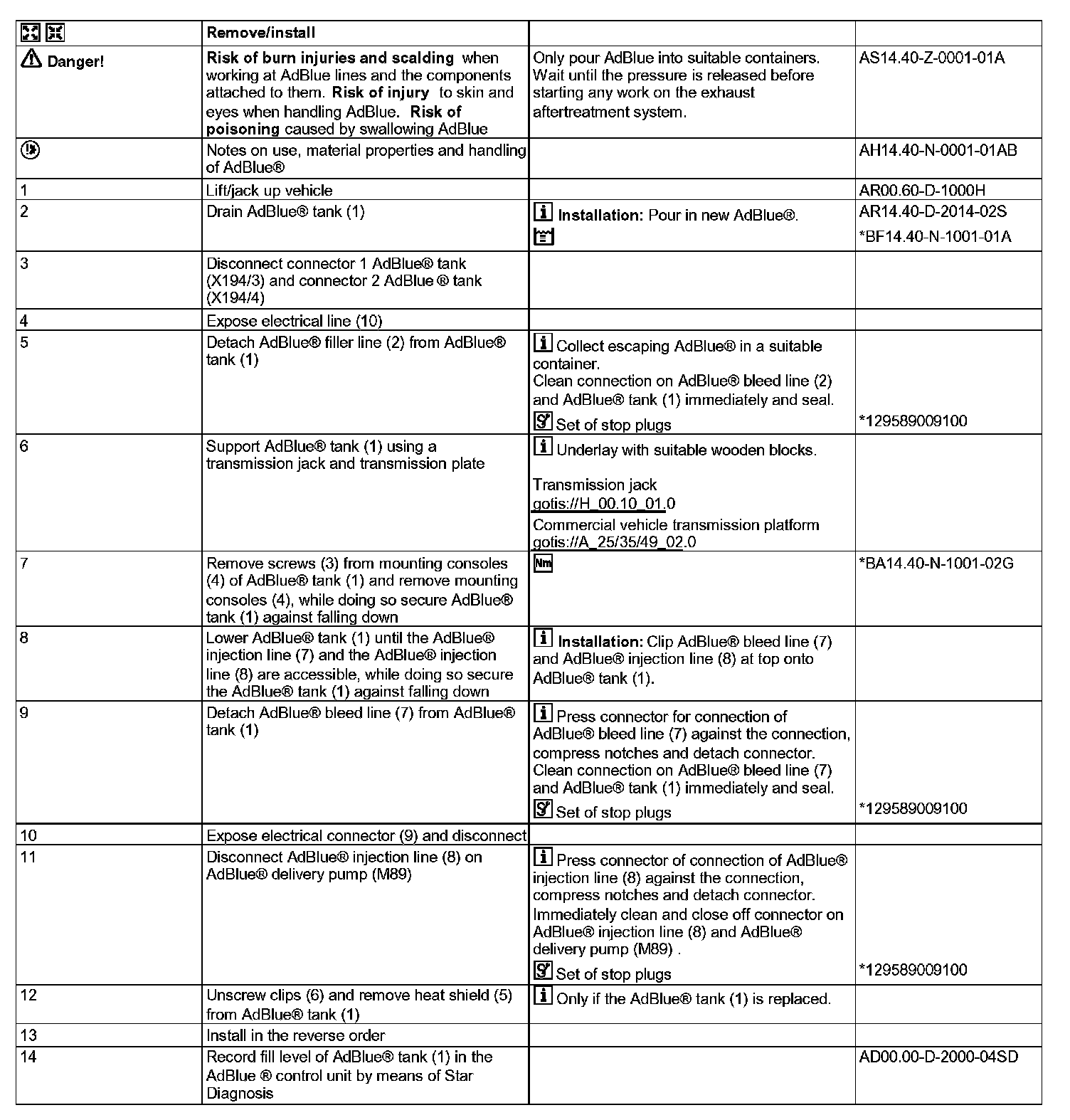

AR14.40-D-2014S Remove/Install Adblue Tank

AR14.40-D-2014S Remove/Install AdBlue Tank

- except CODE (KP2) AdBlue tank, 12 l, in engine compartment

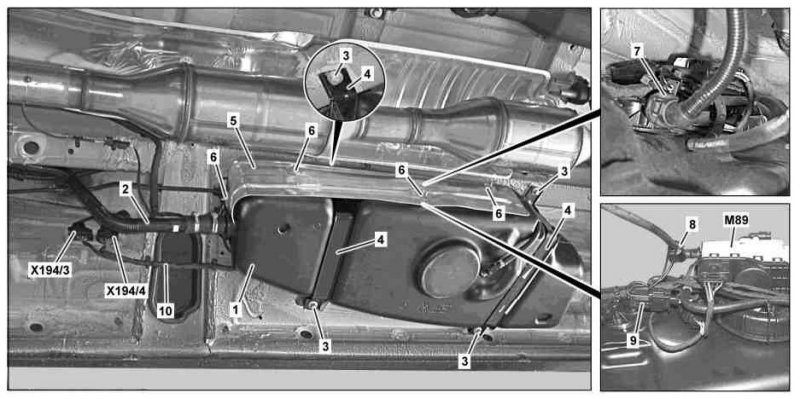

1 AdBlue(R) tank
2 AdBlue(R) filler line
3 Screw
4 Mounting console
5 Heat shield
6 Clip
7 AdBlue(R) bleed line
8 AdBlue(R) injection line
9 Electrical connector
10 Electrical line

M89 AdBlue(R) delivery pump
X194/3 AdBlue(R) tank connector 1
X194/4 AdBlue(R) tank connector 2














129 589 00 91 00
Set of stop plugs
