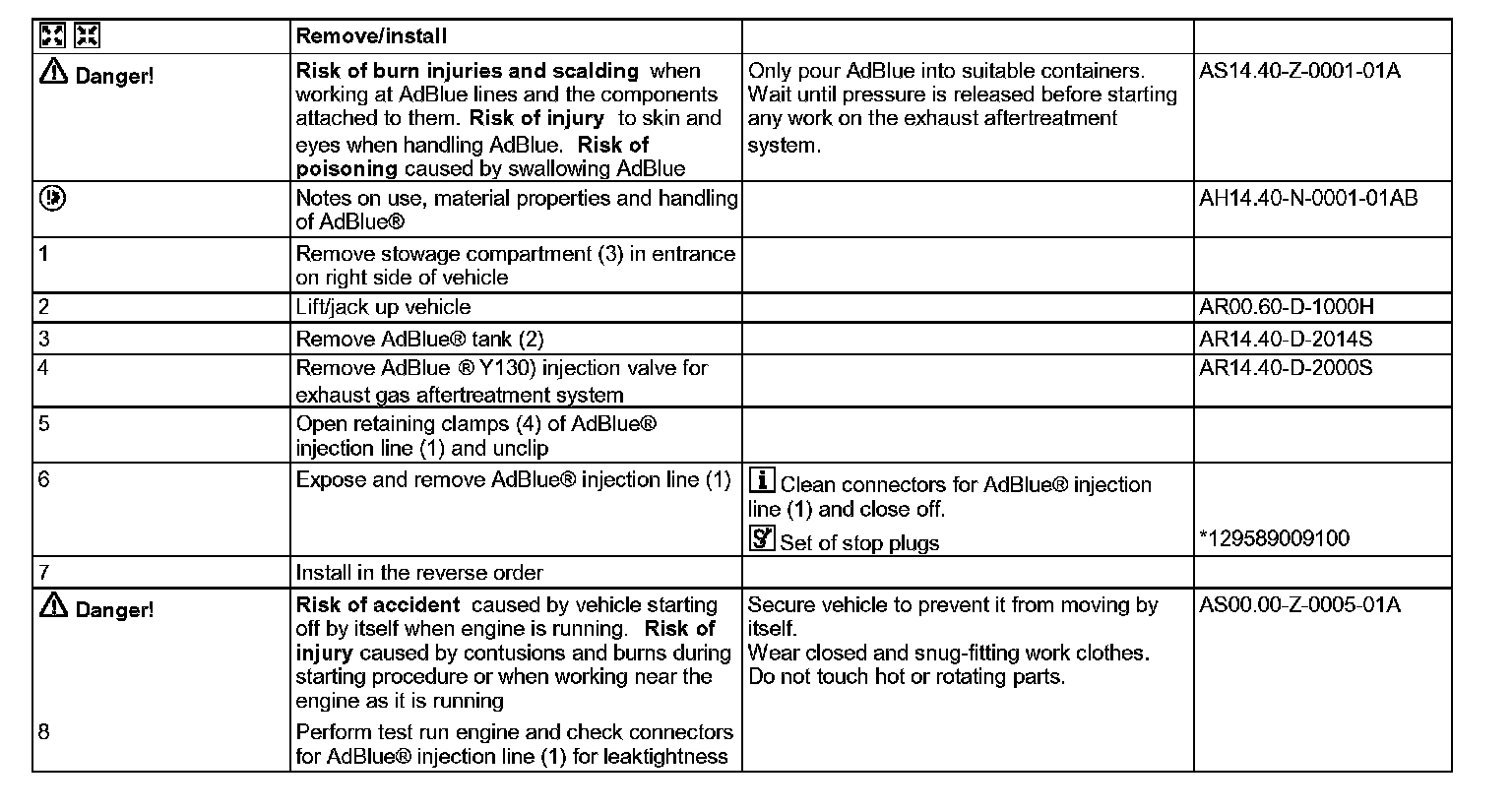

AR14.40-D-2001S Remove/Install Injection Line For Exhaust Aftertreatment System




AR14.40-D-2001S Remove/Install Injection Line For Exhaust Aftertreatment System

- except CODE (KP2) AdBlue tank, 12 l, in engine compartment

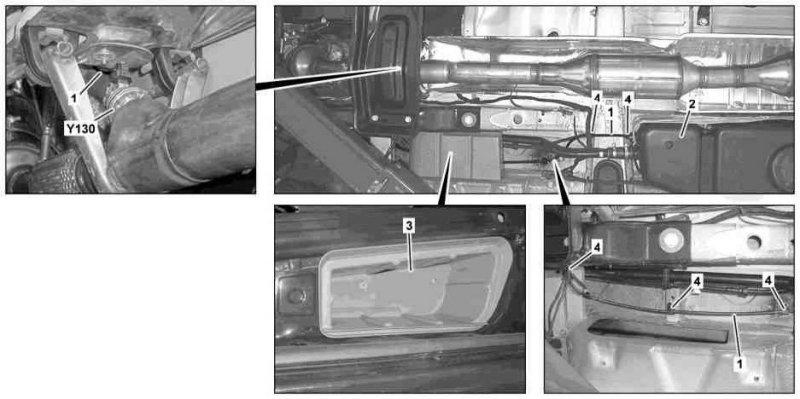

1 AdBlue(R) injection line
2 AdBlue(R) tank
3 Stowage compartment
4 Retaining clamp

Y130 AdBlue(R) injection valve








129 589 00 91 00
Set of stop plugs
