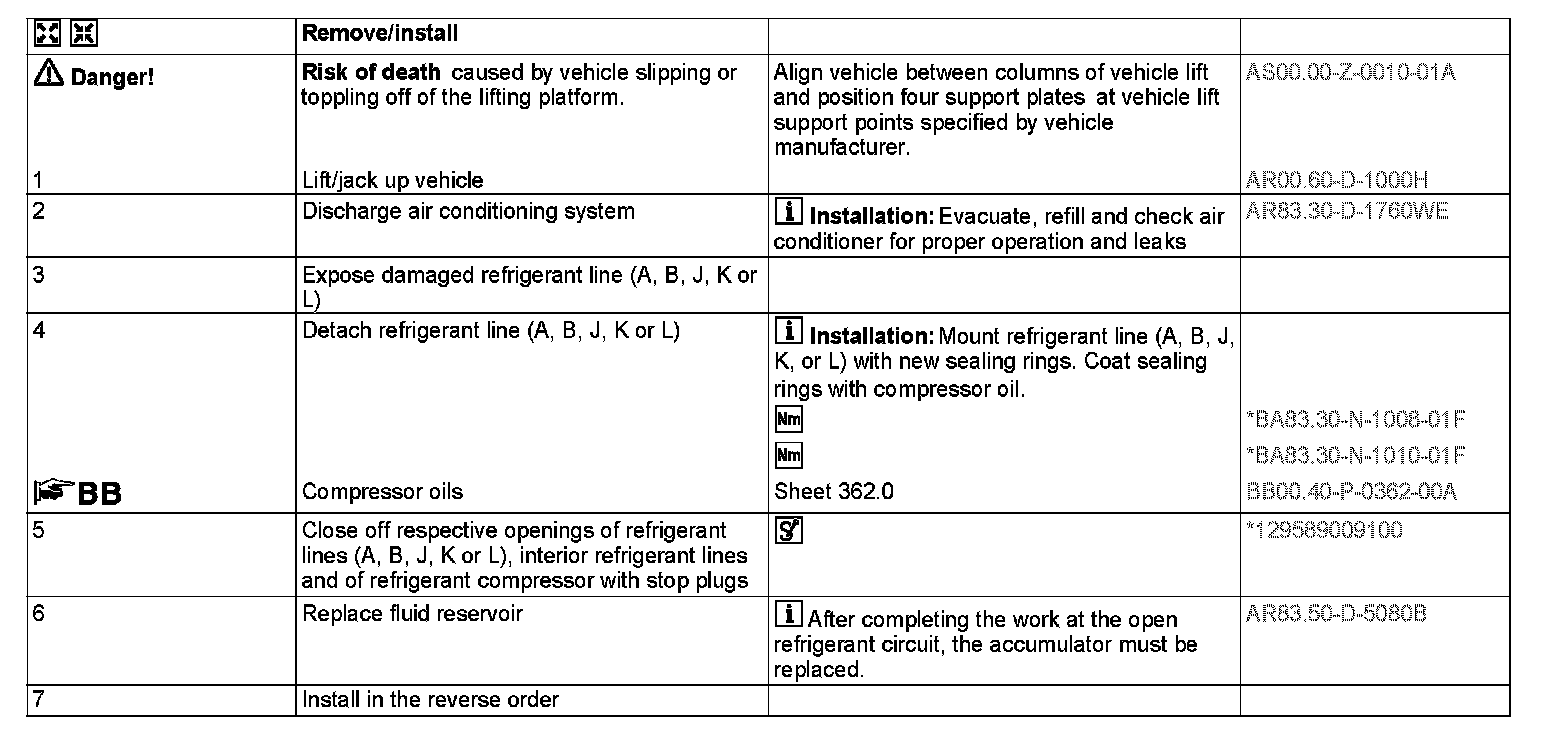

AR83.50-D-6700B Remove/Install Refrigerant Lines In Underfloor/Engine Compartment




AR83.50-D-6700B Remove/Install Refrigerant Lines In Underfloor/Engine Compartment

- with CODE (H08) High-performance air conditioning

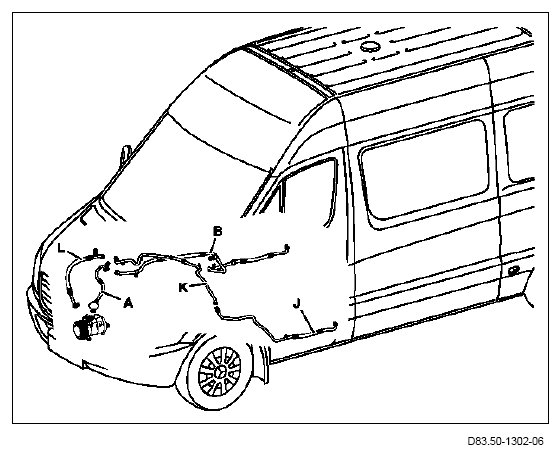

A Refrigerant line (pressure side)
B Refrigerant line (pressure side)
J Refrigerant line (intake side)
K Refrigerant line (intake side)
L Refrigerant line (intake side)












129 589 00 91 00, Set of stop plugs
