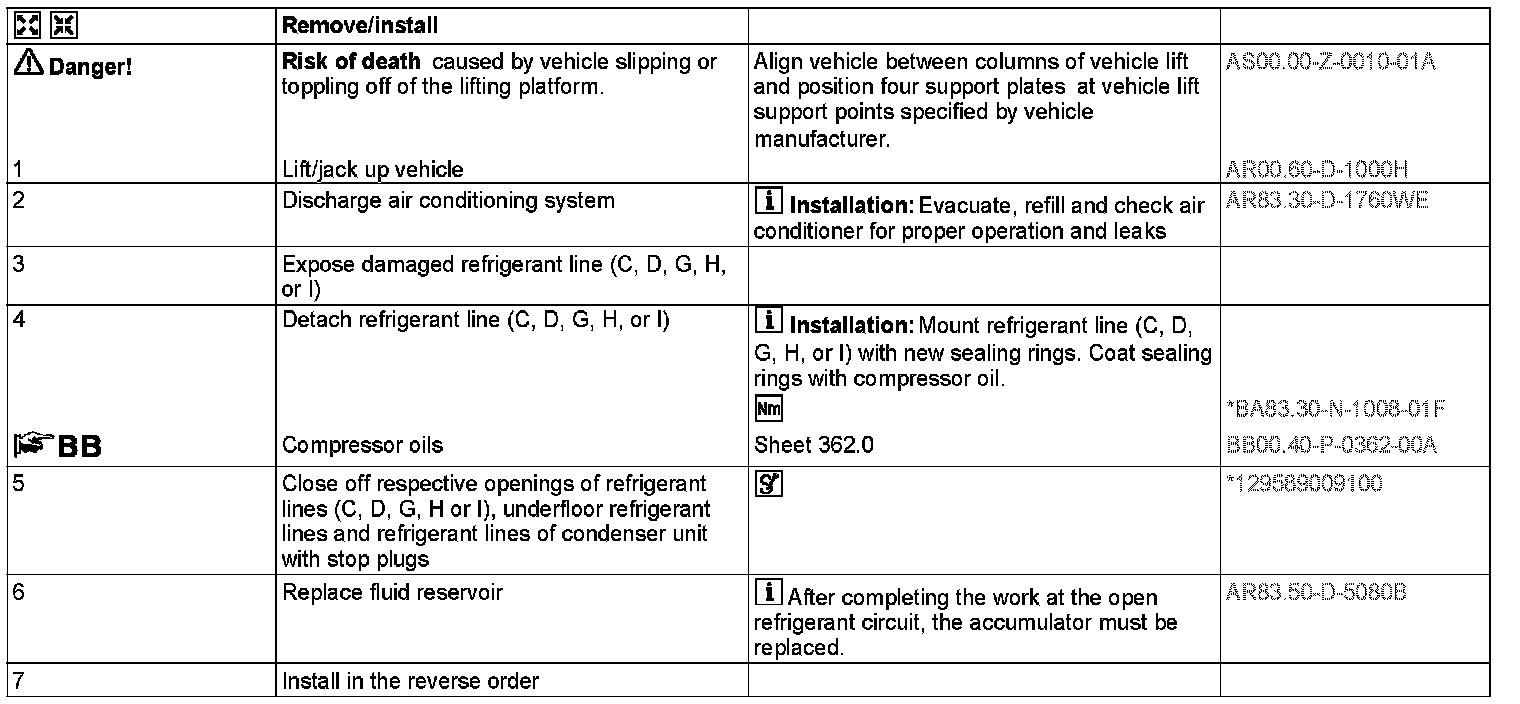

AR83.50-D-6510A Remove/Install Refrigerant Lines In Interior

AR83.50-D-6510A Remove/Install Refrigerant Lines In Interior

- with CODE (H08) High-performance air conditioning

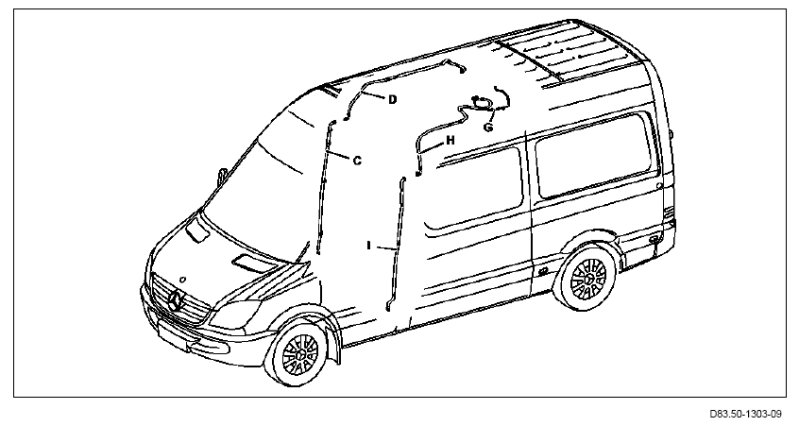

C Refrigerant line (pressure side)
D Refrigerant line (pressure side)
G Refrigerant line (pressure side)
H Refrigerant line (intake side)
I Refrigerant line (intake side)












129 589 00 91 00, Set of stop plugs
