AR40.30-D-0402HD Carry Out Distance and Comparison Measurements on Front and Rear Axles




AR40.30-D-0402HD Carry Out Distance and Comparison Measurements on Front and Rear Axles

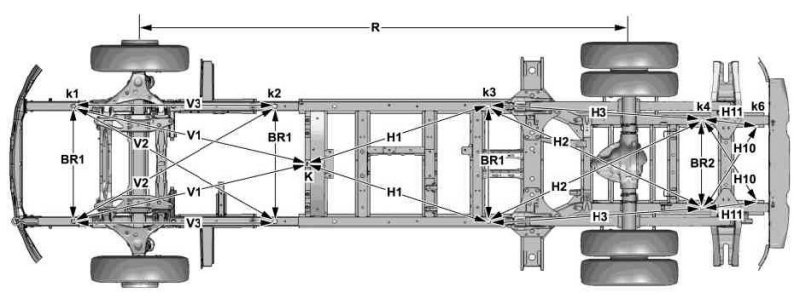

Illustrated on model 906.653

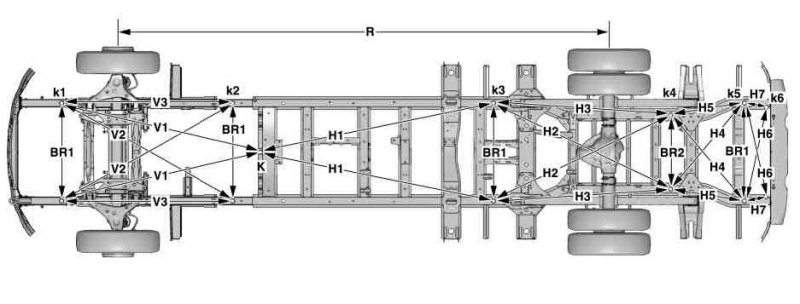

Shown on model 906.655/657




















906 589 09 63 00
Adapter
