GF82.10-D-2113H Additional Turn Signal Module, Component Description

GF82.10-D-2113H Additional Turn Signal Module, Component Description

- with CODE (LB3) Additional flat turn signal lamps on rear of roof







N9/1 Additional turn signal module

Location

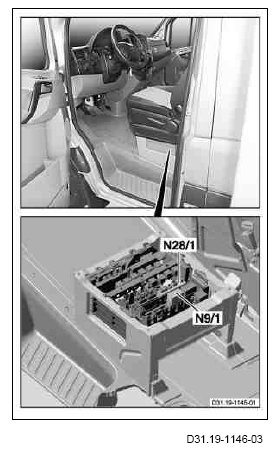

The additional turn signal module is located in the driver seat frame.

Task
The additional turn signal module receives its information from the SAM control unit (N10).
The additional turn signal module actuates the following lamps:
- Left roof additional turn signal lamp (E22/6)
- Right roof additional turn signal lamp (E22/7)
