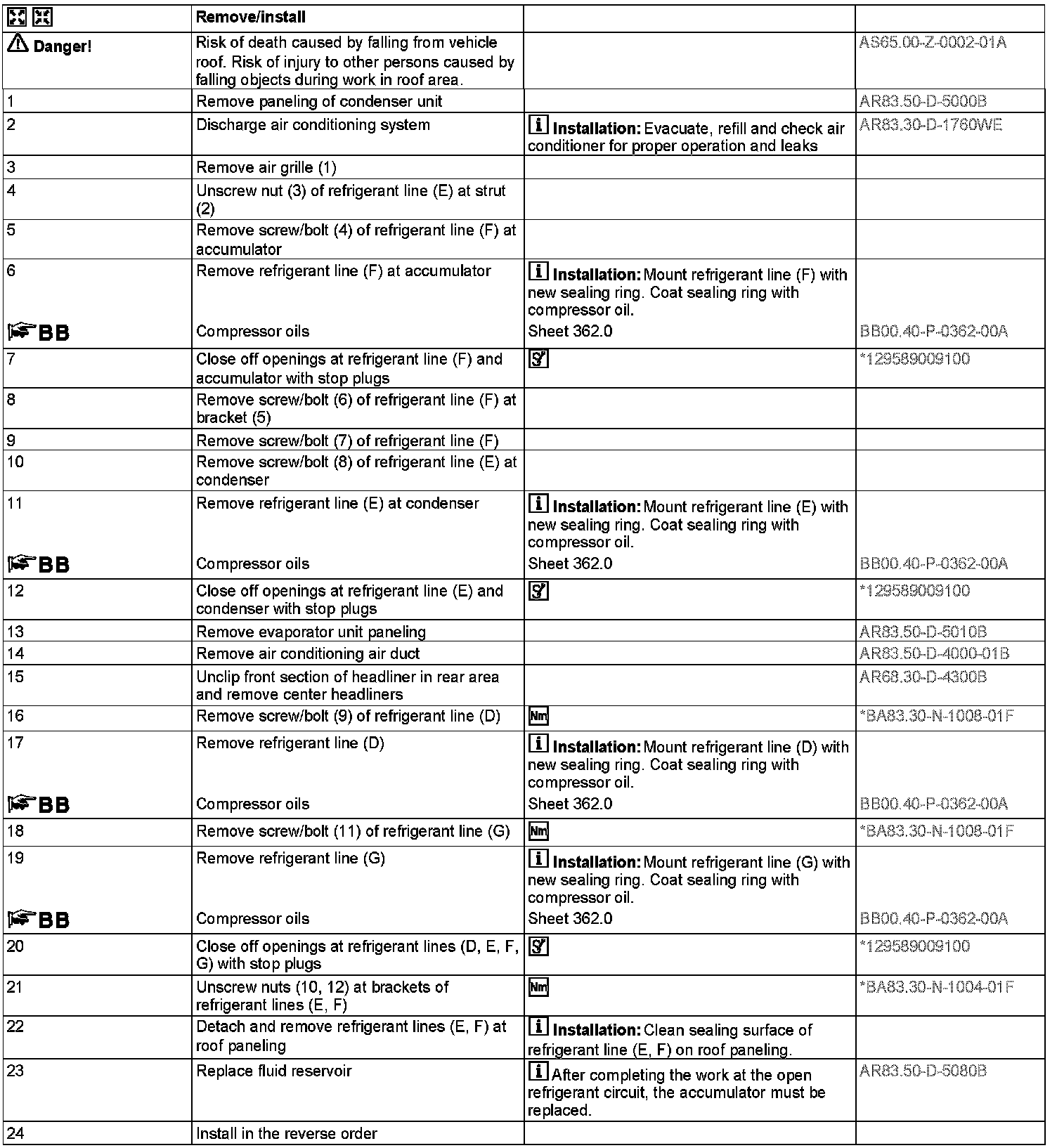

AR83.50-D-6835A Remove/Install Refrigerant Lines At Condenser Unit

AR83.50-D-6835A Remove/Install Refrigerant Lines At Condenser Unit

- with CODE (H08) High-performance air conditioning

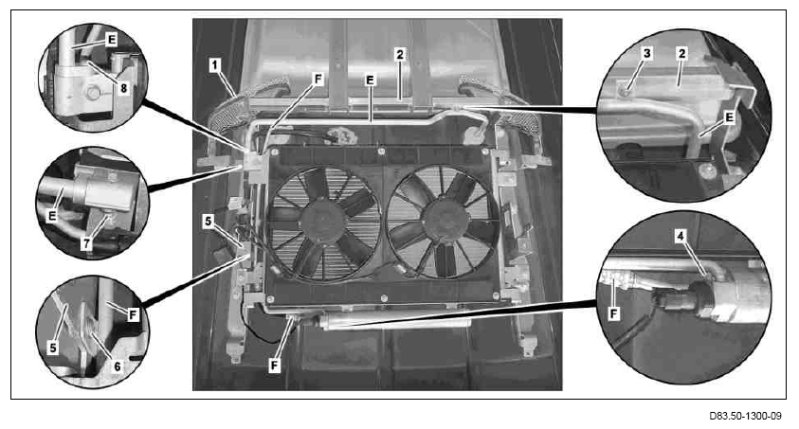

1 Air grille
2 Strut
3 Nut
4 Screw
5 Bracket
6 Screw
7 Screw
8 Screw
E Refrigerant line (pressure side)
F Refrigerant line (pressure side)

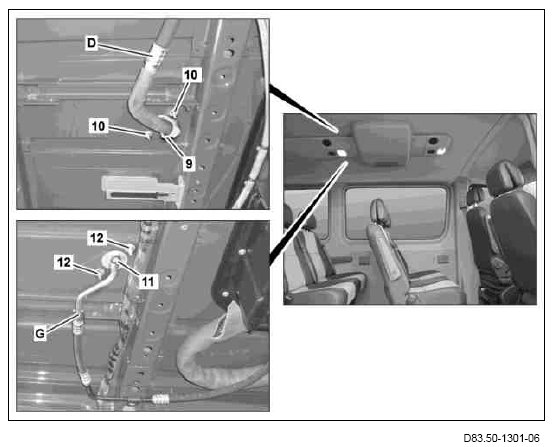

9 Screw
10 Nut
11 Screw
12 Nut
D Refrigerant line (pressure side)
G Refrigerant line (pressure side)












129 589 00 91 00, Set of stop plugs
