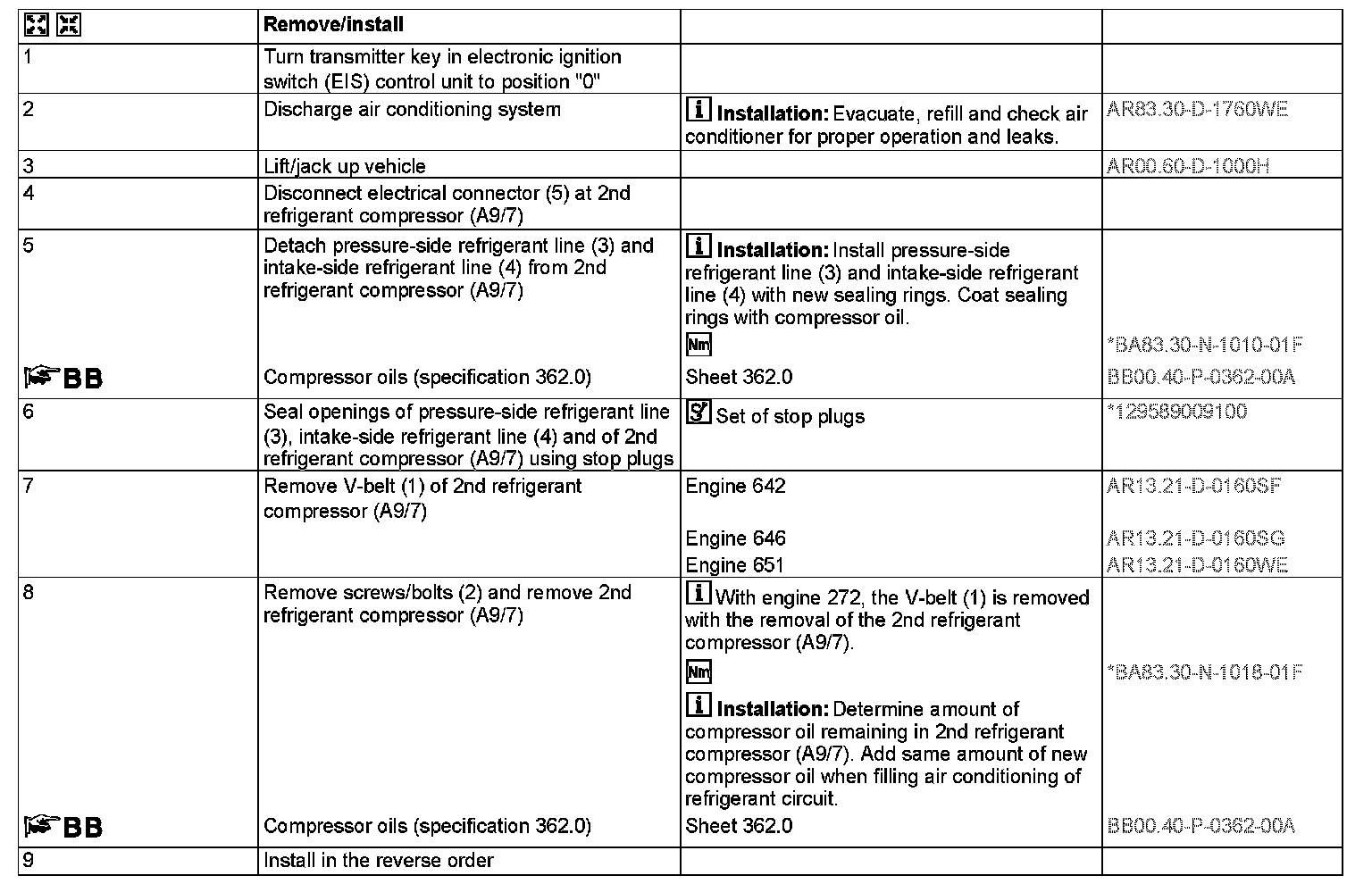

AR83.55-D-5300WE Remove/Install Refrigerant Compressor

AR83.55-D-5300WE Remove/Install Refrigerant Compressor

- with CODE (H08) High-performance air conditioning

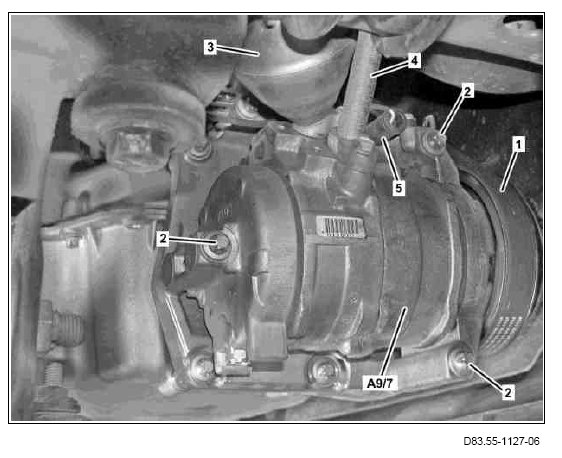

Shown on engine 651
1 V-belt
2 Screw
3 Refrigerant line pressure side
4 Refrigerant line intake side
5 Electrical connector
A9/7 2nd refrigerant compressor












129 589 00 91 00, Set of stop plugs
