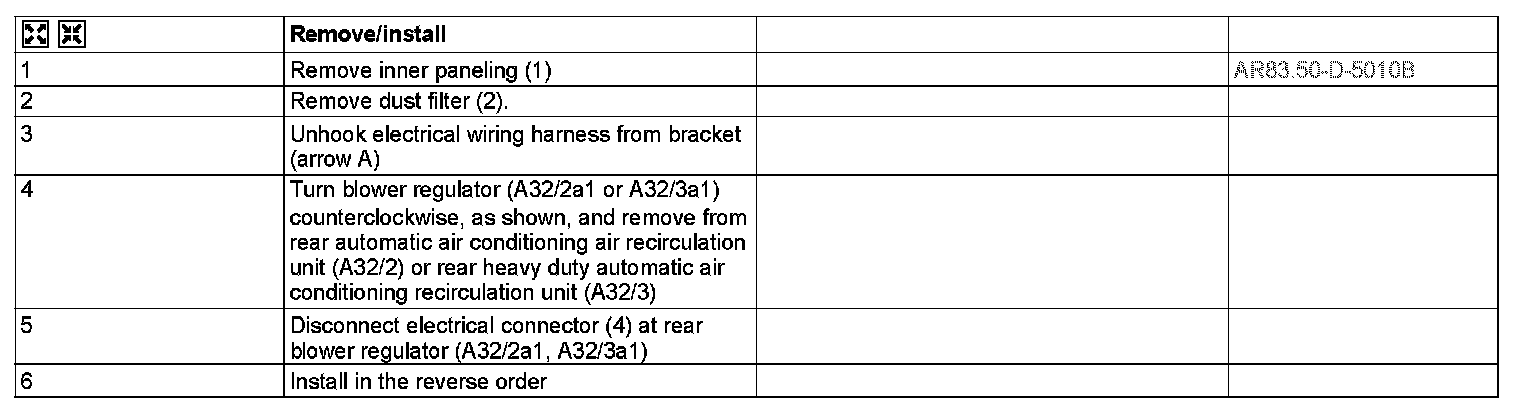

AR83.60-D-9010A Remove/Install Rear Blower Regulator

AR83.60-D-9010A Remove/Install Rear Blower Regulator

- with CODE (HH7) Additional air conditioning in rear
- with CODE (H08) High-performance air conditioning

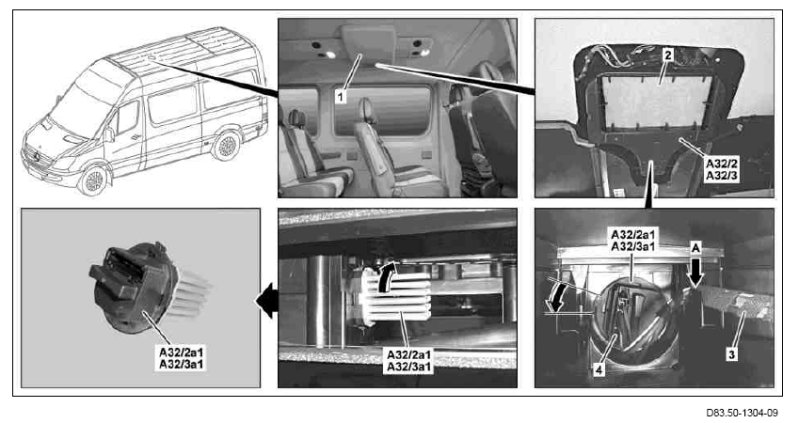

1 Inner paneling
2 Dust filter
3 Wiring harness
4 Electrical connector
A32/2 Rear automatic air conditioning air recirculation unit (with code (HH7) Additional air conditioning in rear)
A32/2a1 Blower regulator (with code (HH7) Additional air conditioning in rear)
A32/3 Rear heavy duty automatic air conditioning recirculation unit (with code (H08) High-performance air conditioning)
A32/3a1 Blower regulator (with code (H08) High-performance air conditioning)
