Auxiliary Cabin Heater Overheat Sensor / Switch: Service and Repair

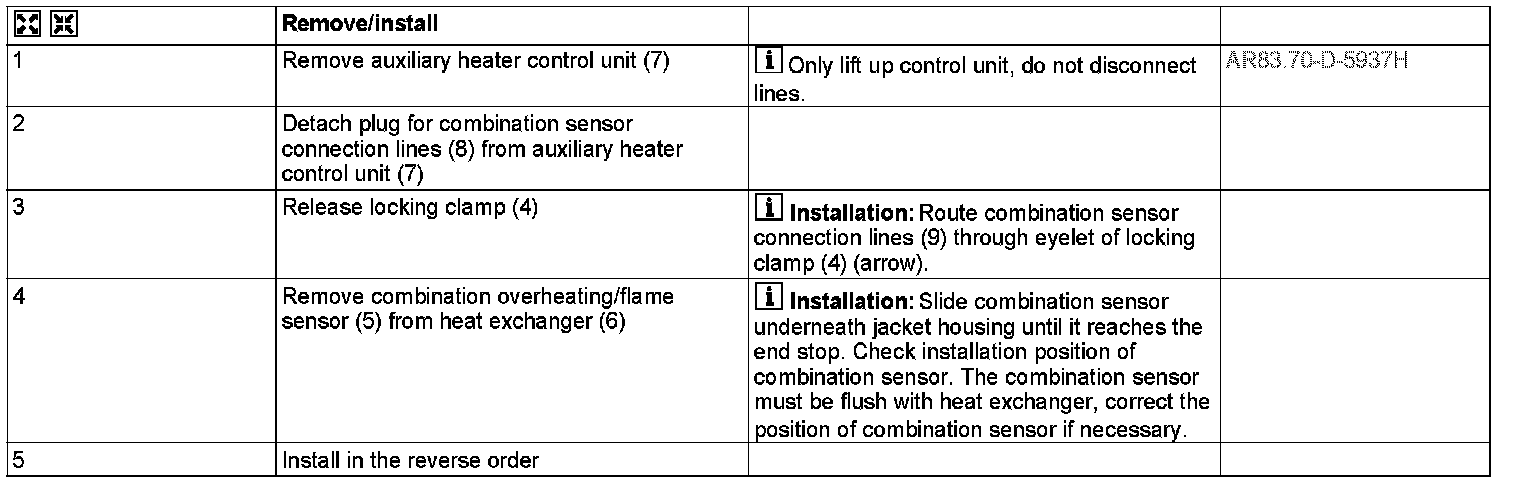

AR83.70-D-5744B Remove/Install Combination Overheating/Flame Sensor

- with CODE (H11) Warm air auxiliary heater

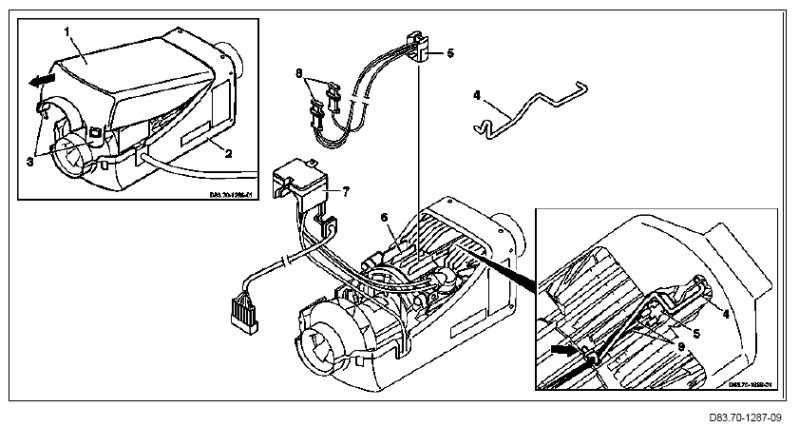

1 Cover
2 Casing housing
3 Locking bracket
4 Locking clamp
5 Combination overheating/flame sensor
6 Heat exchanger
7 Auxiliary heating control unit
8 Plug for combination sensor connection lines
9 Combination sensor connection lines
