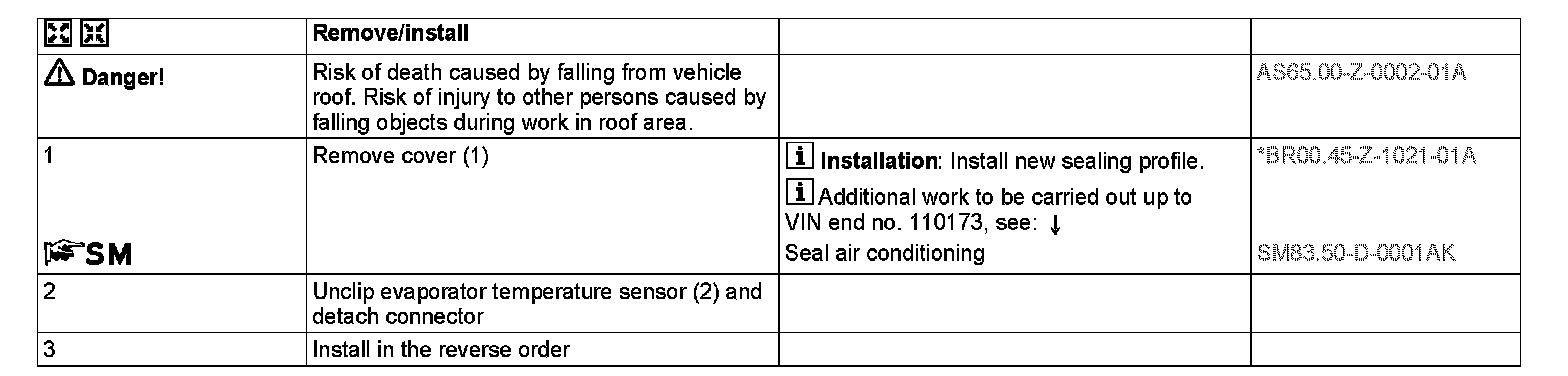

AR83.50-D-6460A Remove/Install Air Conditioning Evaporator Temperature Sensor (Roof Equipment)




AR83.50-D-6460A Remove/Install Air Conditioning Evaporator Temperature Sensor (Roof Equipment)

- with CODE (HH7) Additional air conditioning in rear

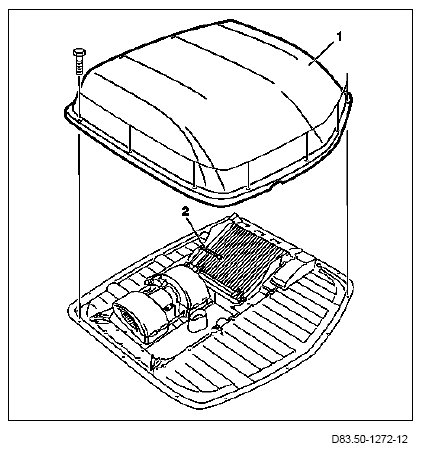

1 Cover
2 Evaporator temperature sensor
