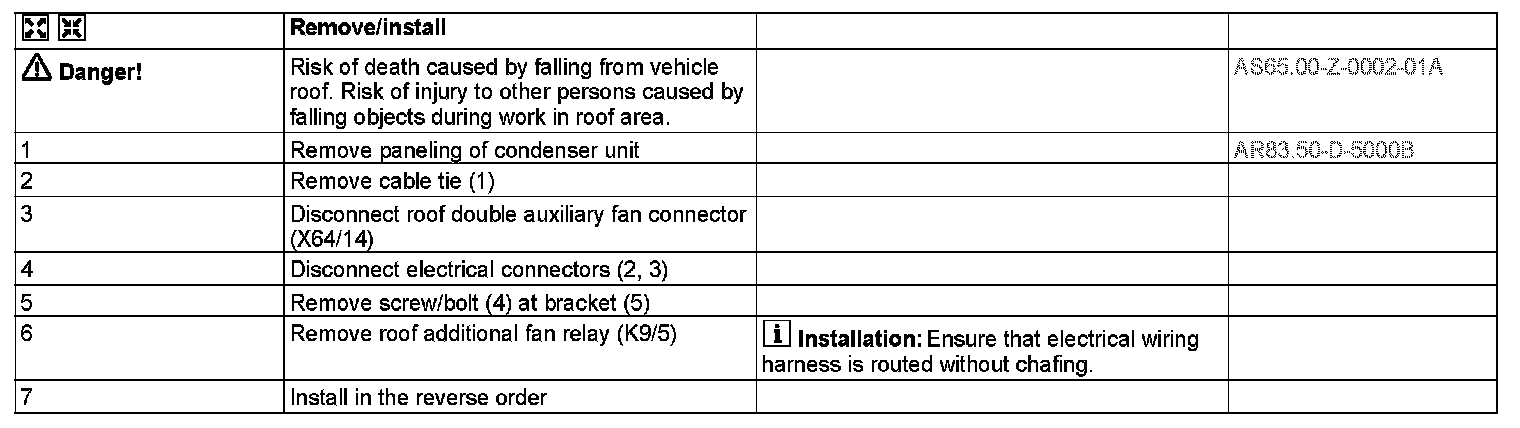

AR83.50-D-6030D Remove/Install the Air Conditioning's (Roof Equipment) Relay

AR83.50-D-6030D Remove/Install The Air Conditioning's (Roof Equipment) Relay

- with CODE (H08) High-performance air conditioning

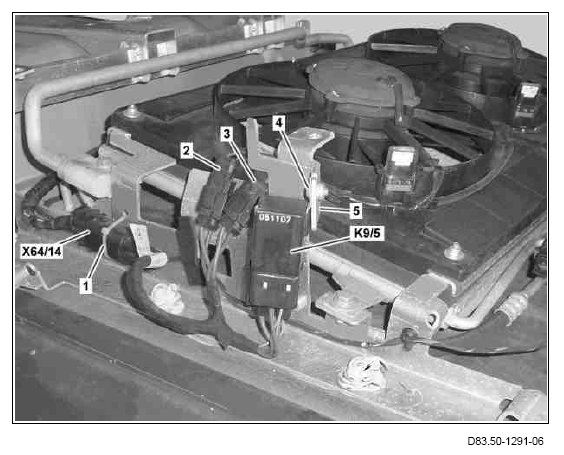

1 Cable tie
2 Electrical connector
3 Electrical connector
4 Screw
5 Bracket
K9/5 Roof additional fan relay
X64/14 Roof double auxiliary fan connector
