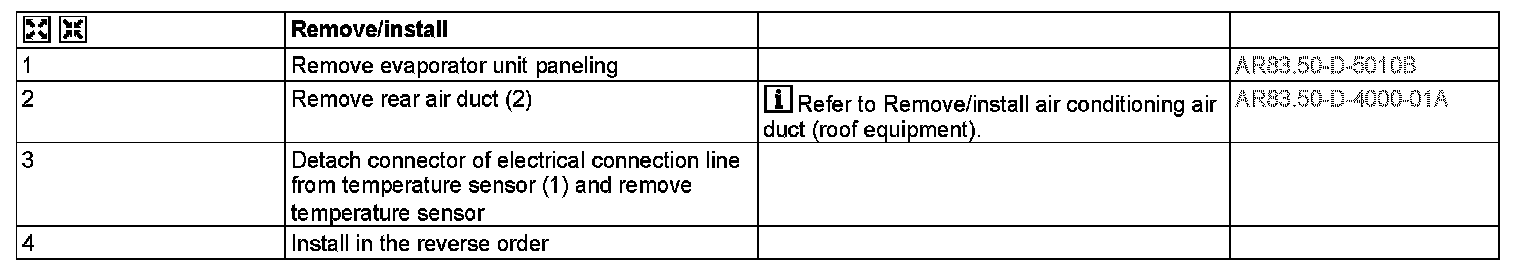

AR83.50-D-6010B Remove/Install Air Conditioning's Air Temperature Sensor (Roof Equipment)




AR83.50-D-6010B Remove/Install Air Conditioning's Air Temperature Sensor (Roof Equipment)

- with CODE (HH7) Additional air conditioning in rear

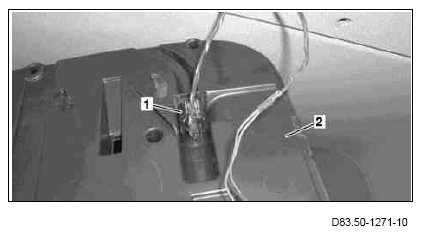

1 Temperature sensor
2 Rear air duct
