AR83.50-D-5110A Remove/Install the Air Conditioning's Condenser (Roof Equipment)

AR83.50-D-5110A Remove/Install The Air Conditioning's Condenser (Roof Equipment)

- with CODE (H08) High-performance air conditioning

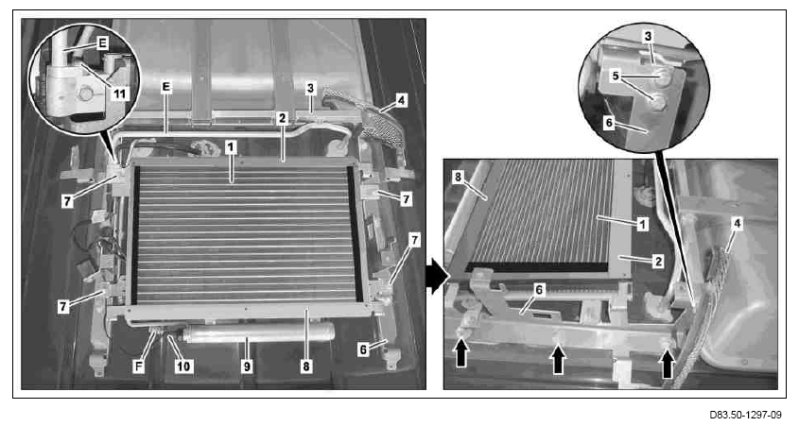

1 Capacitor
2 Bracket
3 Strut
4 Air grille
5 Bolts
6 Bracket
7 Screw
8 Bracket
9 Fluid reservoir
10 Electrical connector
11 Screw
E Refrigerant line (pressure side)
F Refrigerant line (pressure side)












129 589 00 91 00, Set of stop plugs
