AR83.50-D-5100B Remove/Install the Air Conditioning's Condenser Unit (Roof Equipment)

AR83.50-D-5100B Remove/Install The Air Conditioning's Condenser Unit (Roof Equipment)

- with CODE (H08) High-performance air conditioning







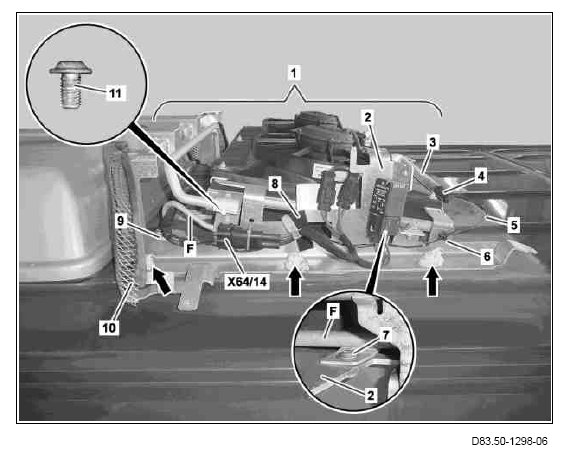

1 Condenser unit
2 Bracket
3 Fluid reservoir
4 Electrical connector
5 Wiring harness
6 Clip
7 Screw
8 Felt strip
9 Clamp
10 Air grille
11 Screw
X64/14 Roof double auxiliary fan connector
F Refrigerant line (pressure side)

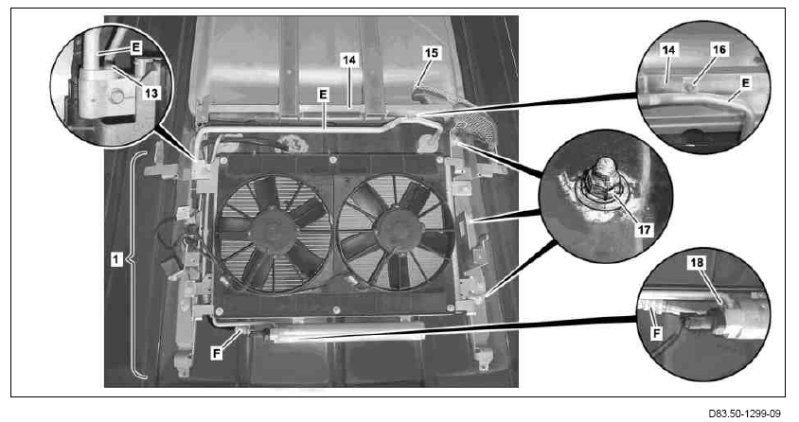

1 Condenser unit
13 Screw
14 Strut
15 Air grille
16 Nut
17 Nut
18 Screw
E Refrigerant line (pressure side)
F Refrigerant line (pressure side)







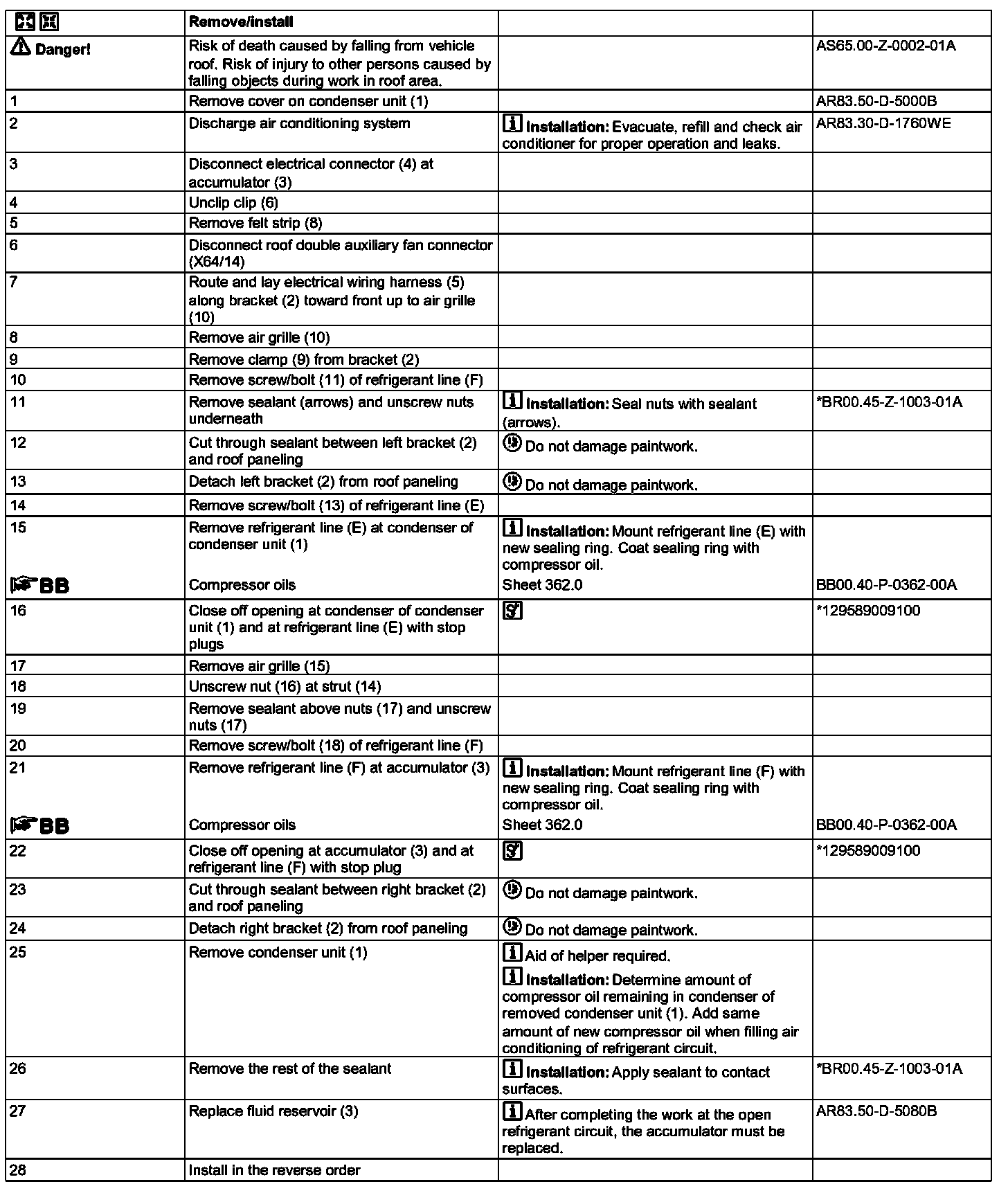

129 589 00 91 00, Set of stop plugs
