AR83.50-D-5080B Remove/Install the Air Conditioning's Fluid Reservoir (Roof Equipment)

AR83.50-D-5080B Remove/Install The Air Conditioning's Fluid Reservoir (Roof Equipment)

- with CODE (H08) High-performance air conditioning

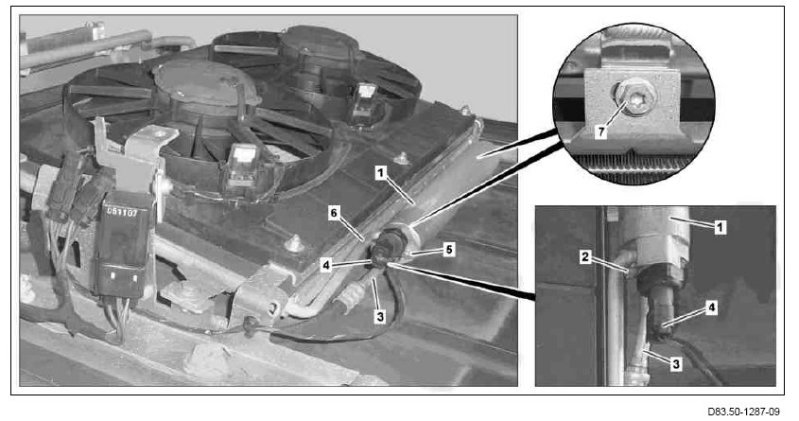

1 Fluid reservoir
2 Screw
3 Refrigerant line
4 Electrical connector
5 Screw
6 Refrigerant line for condenser
7 Screw












129 589 00 91 00, Set of stop plugs
