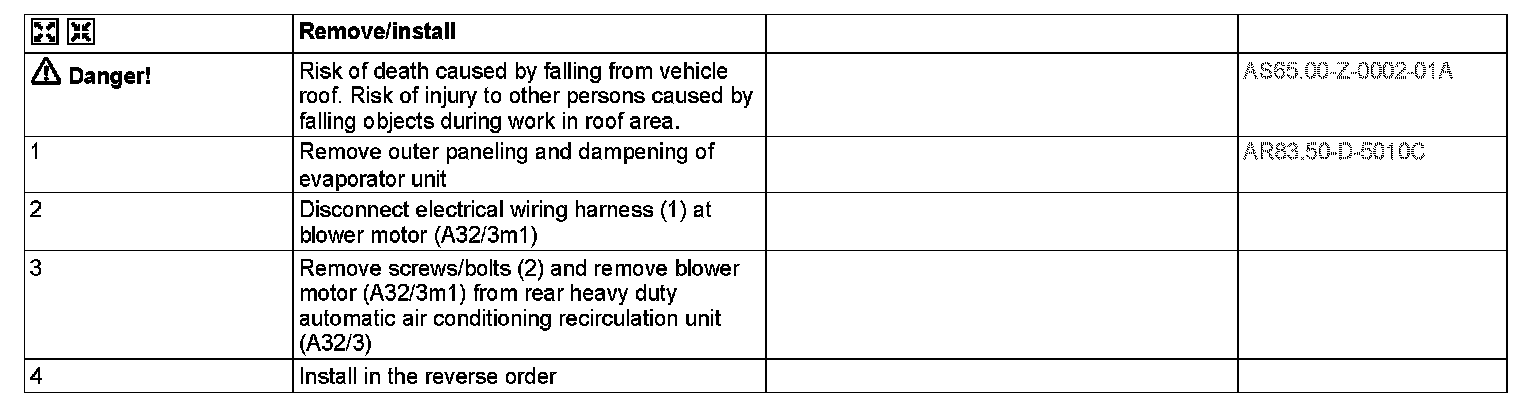

AR83.50-D-5050C Remove/Install the Air Conditioning's Evaporator Fan (Roof Equipment)




AR83.50-D-5050C Remove/Install The Air Conditioning's Evaporator Fan (Roof Equipment)

- with CODE (H08) High-performance air conditioning

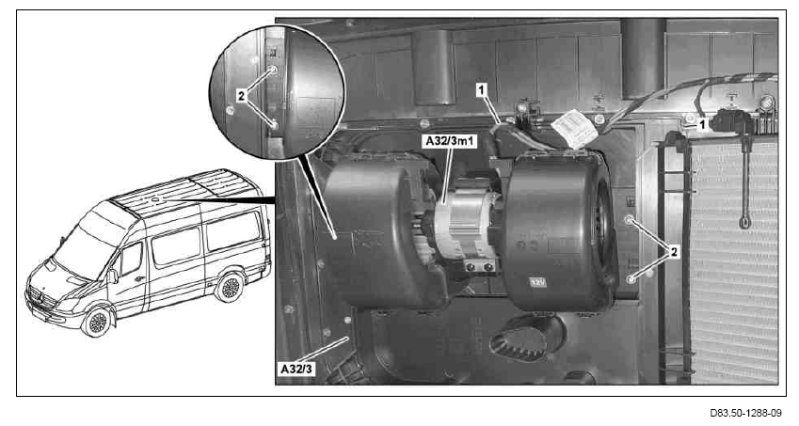

1 Wiring harness
2 Bolts
A32/3 Rear heavy duty automatic air conditioning recirculation unit
A32/3m1 Blower motor
