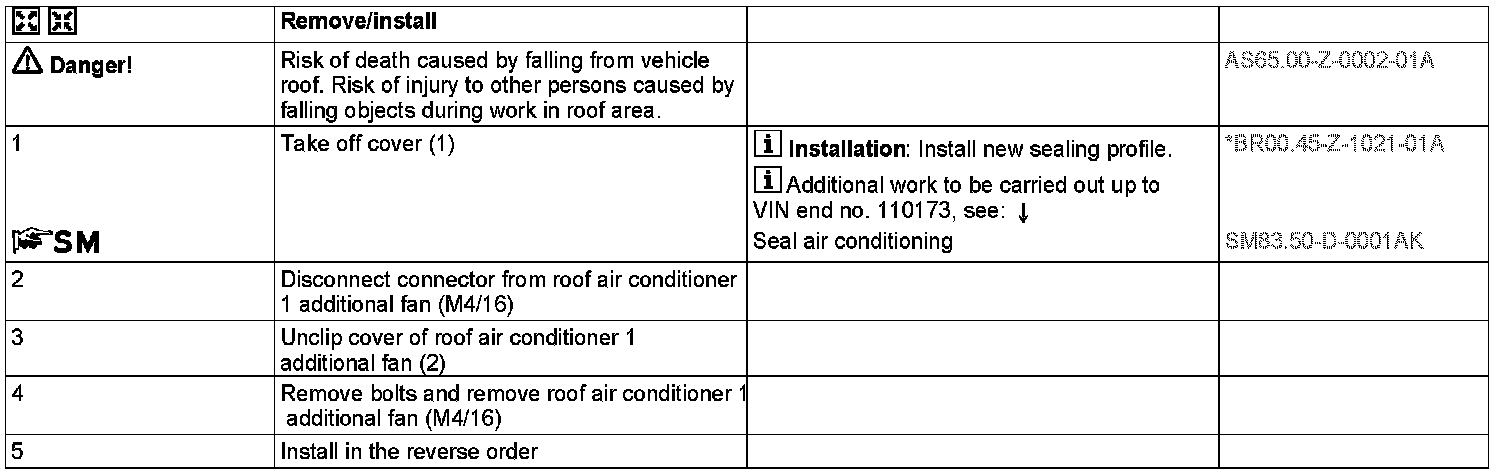

AR83.50-D-5050B Remove/Install the Air Conditioning's Evaporator Fan (Roof Equipment)




AR83.50-D-5050B Remove/Install The Air Conditioning's Evaporator Fan (Roof Equipment)

- with CODE (HH7) Additional air conditioning in rear

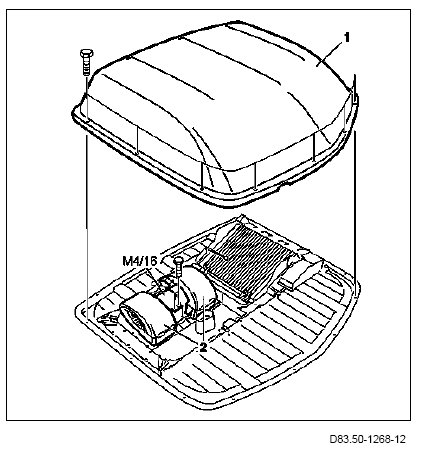

1 Cover
2 Roof air conditioner 1 additional fan cover
M4/16 Roof air conditioner 1 additional fan
