AR83.50-D-5040C Remove/Install the Air Conditioning's Evaporator Unit (Roof Equipment)

AR83.50-D-5040C Remove/Install The Air Conditioning's Evaporator Unit (Roof Equipment)

- with CODE (H08) High-performance air conditioning

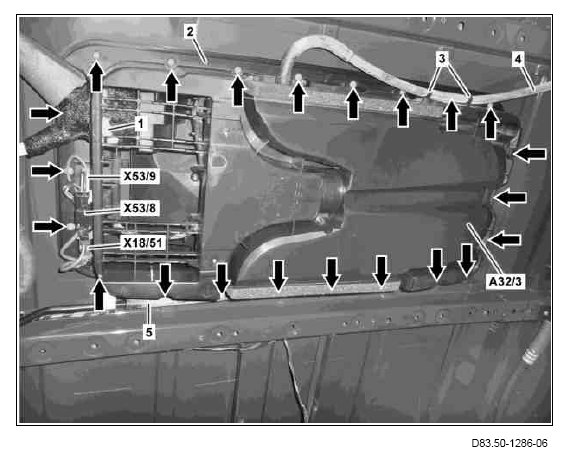

1 Expansion valve
2 Installation frame
3 Clip
4 Condensation hose
5 Condensation hose
A32/3 Rear heavy duty automatic air conditioning recirculation unit
X18/51 COC/DLS connector
X53/8 Roof air conditioning connector
X53/9 Roof air conditioning connector

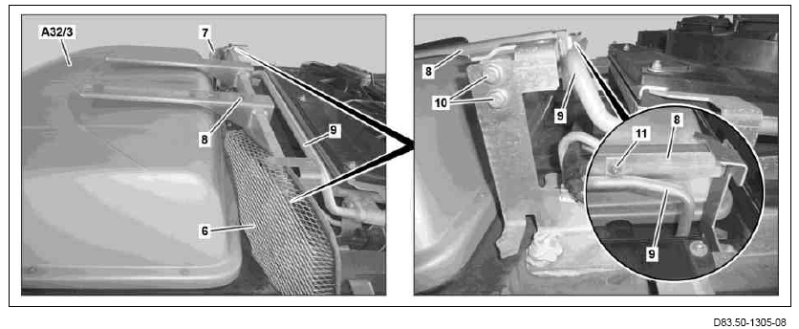

6 Left air grille
7 Right air grille
8 Strut
9 Refrigerant line
10 Bolts
11 Nut
A32/3 Rear heavy duty automatic air conditioning recirculation unit

















129 589 00 91 00, Set of stop plugs
