AR83.50-D-5040B Remove/Install Air Conditioning's Evaporator Unit (Roof Equipment)

AR83.50-D-5040B Remove/Install Air Conditioning's Evaporator Unit (Roof Equipment)

- with CODE (HH7) Additional air conditioning in rear

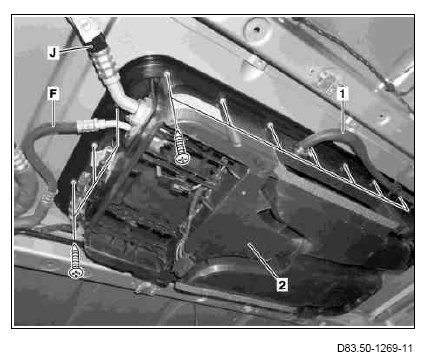

1 Condensation hose
2 Evaporator unit
F Refrigerant line on pressure side
J Refrigerant line intake side

















129 589 00 91 00, Set of stop plugs
