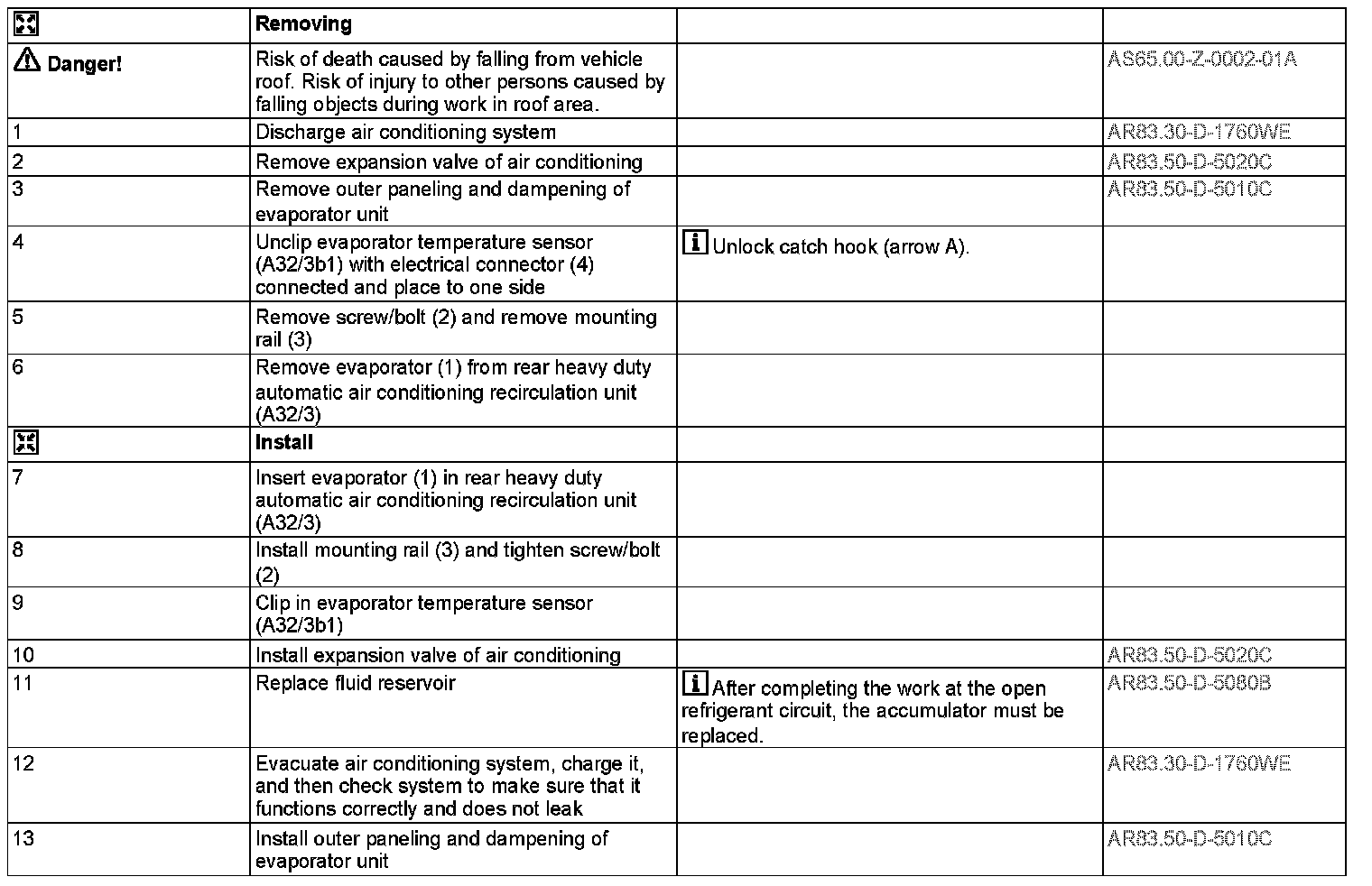

AR83.50-D-5030C Remove/Install the Air Conditioning's Evaporator (Roof Equipment)

AR83.50-D-5030C Remove/Install The Air Conditioning's Evaporator (Roof Equipment)

- with CODE (H08) High-performance air conditioning

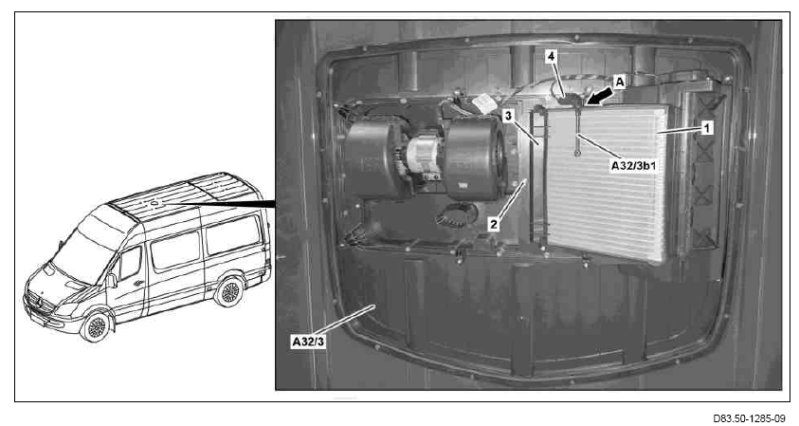

1 Evaporator
2 Screw
3 Retaining rail
4 Electrical connector
A32/3 Rear heavy duty automatic air conditioning recirculation unit
A32/3b1 Evaporator temperature sensor
