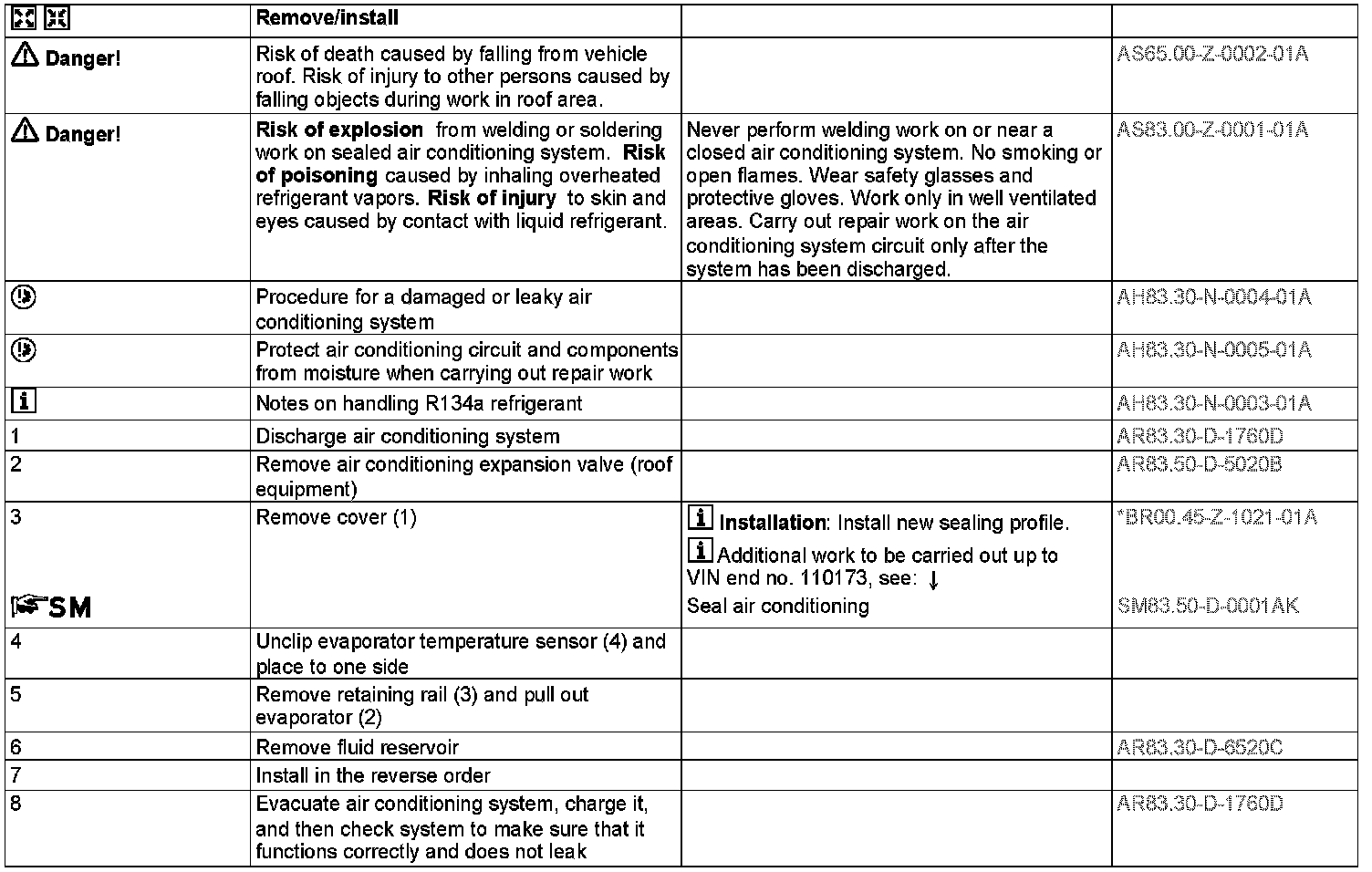

AR83.50-D-5030B Remove/Install the Air Conditioning's Evaporator (Roof Equipment)




AR83.50-D-5030B Remove/Install The Air Conditioning's Evaporator (Roof Equipment)

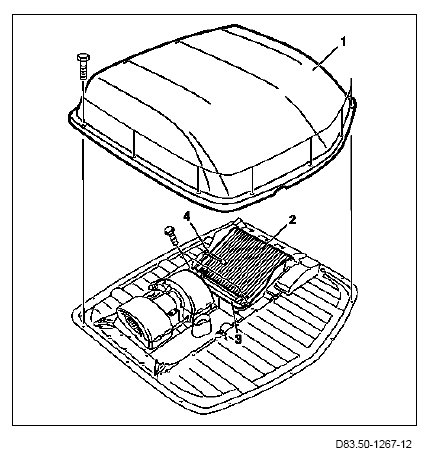

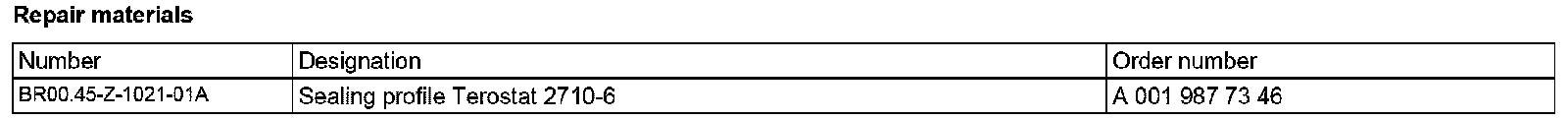

- with CODE (HH7) Additional air conditioning in rear







1 Cover
2 Evaporator
3 Retaining rail
4 Evaporator temperature sensor
