AR83.50-D-5020C Remove/Install the Air Conditioning (Roof Equipment)

AR83.50-D-5020C Remove/Install The Air Conditioning (Roof Equipment)

- with CODE (H08) High-performance air conditioning

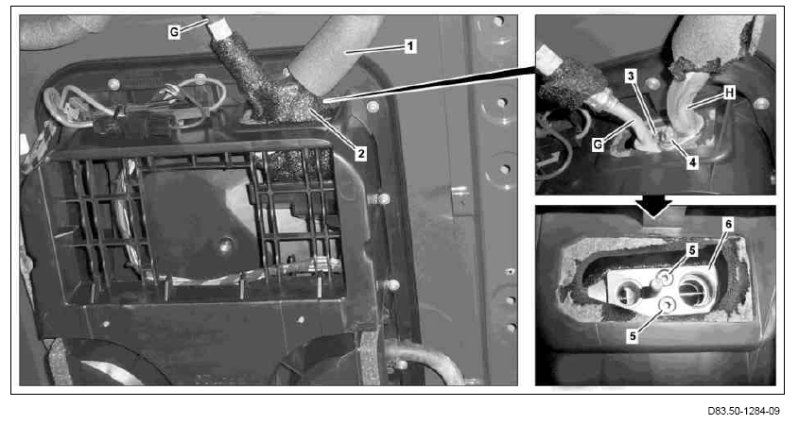

1 Insulating hose
2 Insulation
3 Nut
4 Nut
5 Screw
6 Expansion valve
G Refrigerant line (pressure side)
H Refrigerant line (intake side)

















129 589 00 91 00, Set of stop plugs
