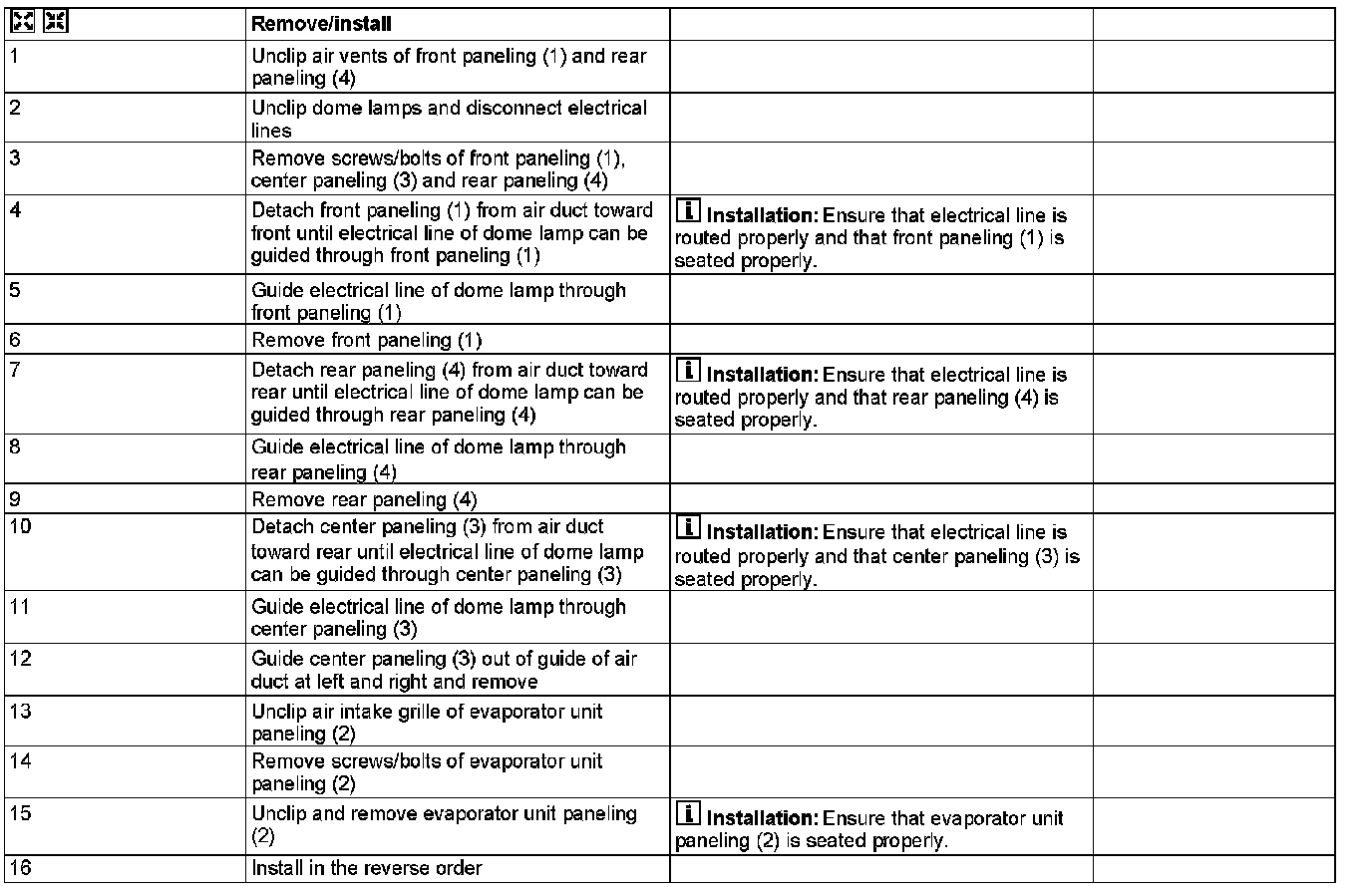

AR83.50-D-5010B Remove/Install Evaporator Unit Paneling

AR83.50-D-5010B Remove/Install Evaporator Unit Paneling

- with CODE (HH7) Additional air conditioning in rear
- with CODE (H08) High-performance air conditioning

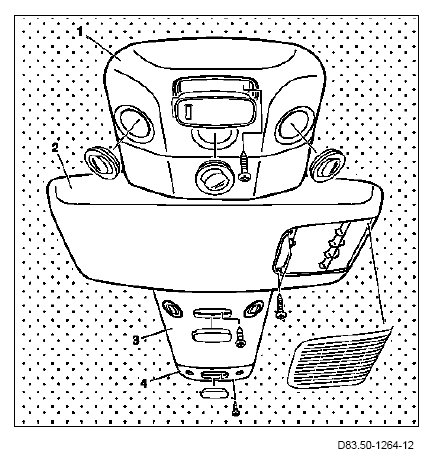

Inner paneling







1 Front trim
2 Evaporator unit paneling
3 Center trim
4 Rear trim
