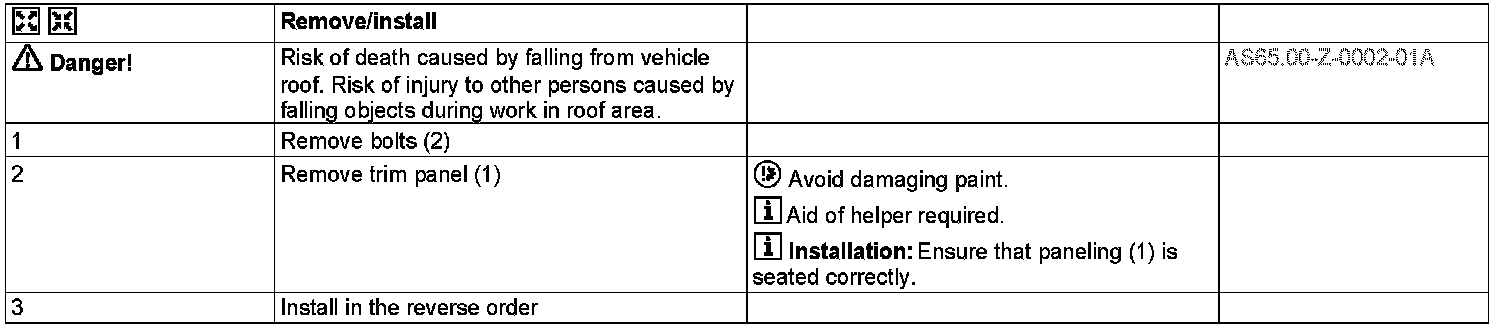

AR83.50-D-5000B Remove/Install Condenser Unit Paneling

AR83.50-D-5000B Remove/Install Condenser Unit Paneling

- with CODE (H08) High-performance air conditioning

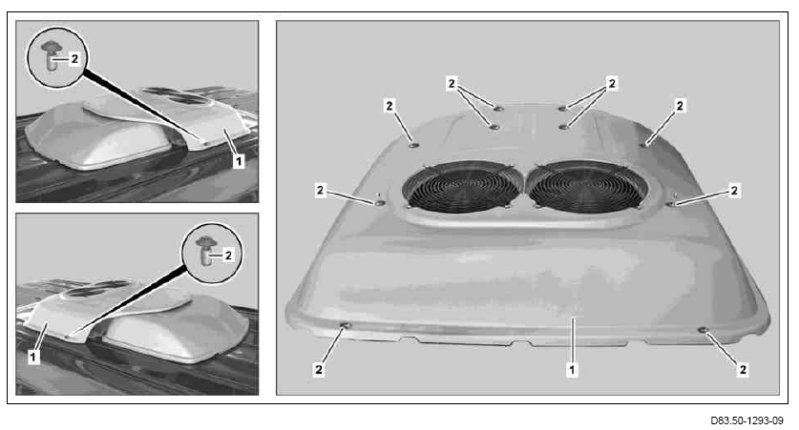

1 Trim
2 Bolts
