AR83.50-D-4000-01B Remove/Install the Air Duct For the Air Conditioning (Roof Equipment)

AR83.50-D-4000-01B Remove/Install The Air Duct For The Air Conditioning (Roof Equipment)
- with CODE (H08) High-performance air conditioning

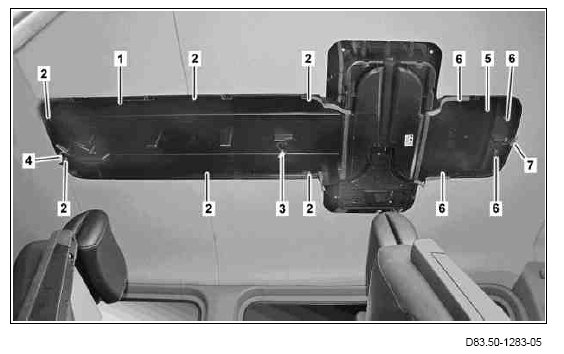

1 Remove screws/bolts (2) and lower rear air duct (1) until the electrical lines (3, 4) of the illumination can be removed from the rear air duct (1).
2 Remove electrical lines (3, 4) of illumination from rear air duct (1).
Installation: Ensure that electrical lines (3, 4) are routed correctly.

3 Remove rear air duct (1).
4 Remove screws/bolts (6) and lower front air duct (5) until electrical line (7) of illumination can be removed from front air duct (5).
5 Remove electrical line (7) of illumination from front air duct (5).
Installation: Ensure that electric wiring line (7) is routed properly.

6 Remove front air duct (5).
7 Install in the reverse order.
