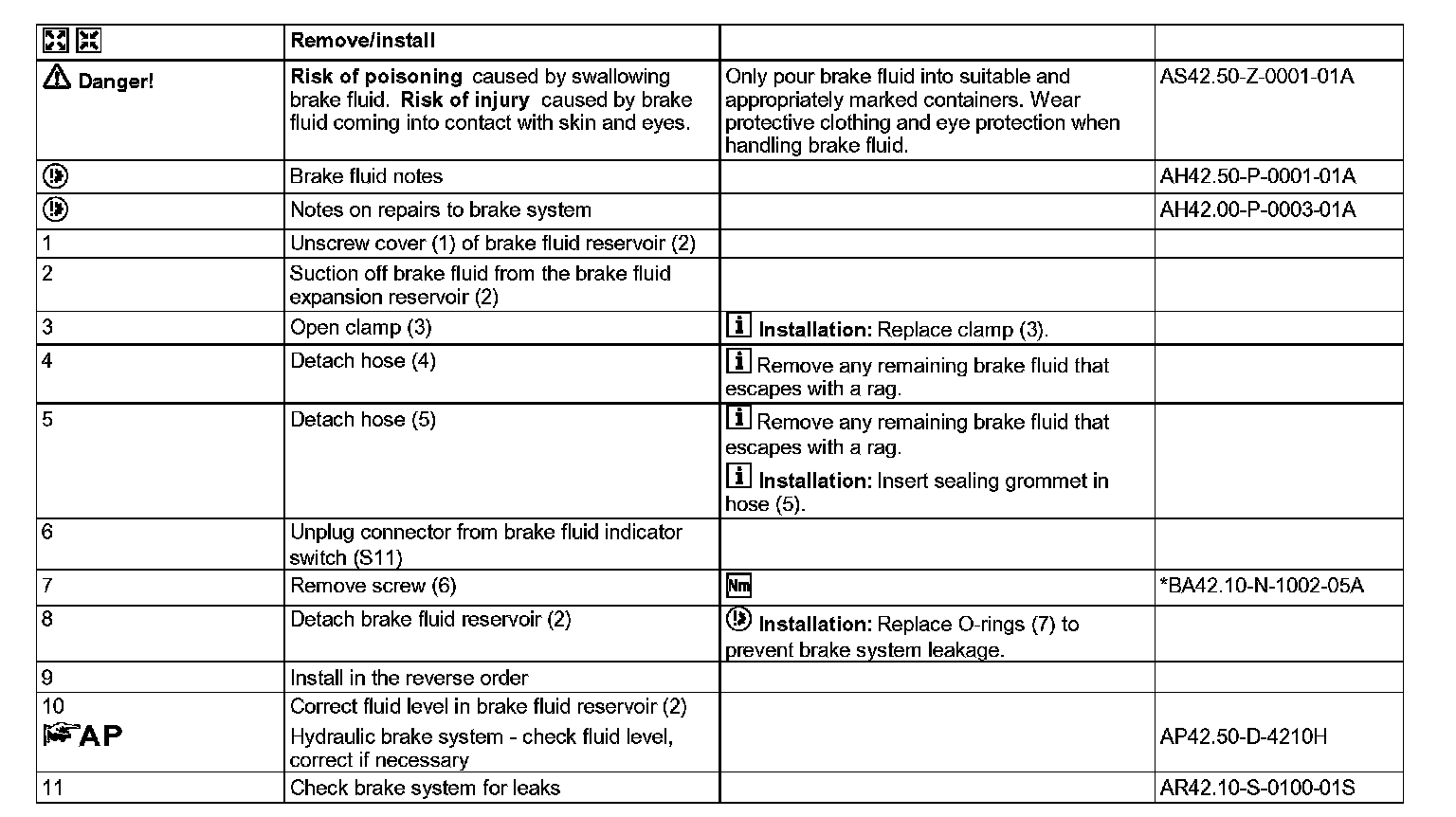

AR42.10-D-0301H Remove/Install Brake Fluid Reservoir




AR42.10-D-0301H Remove/Install Brake Fluid Reservoir

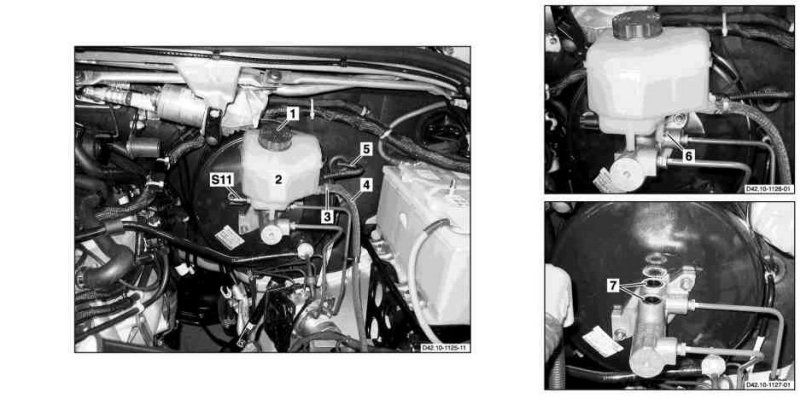

1 Cover
2 Brake fluid reservoir
3 Clip
4 Hose
5 Hose
6 Screw
7 O-rings

S11 Brake fluid indicator switch
