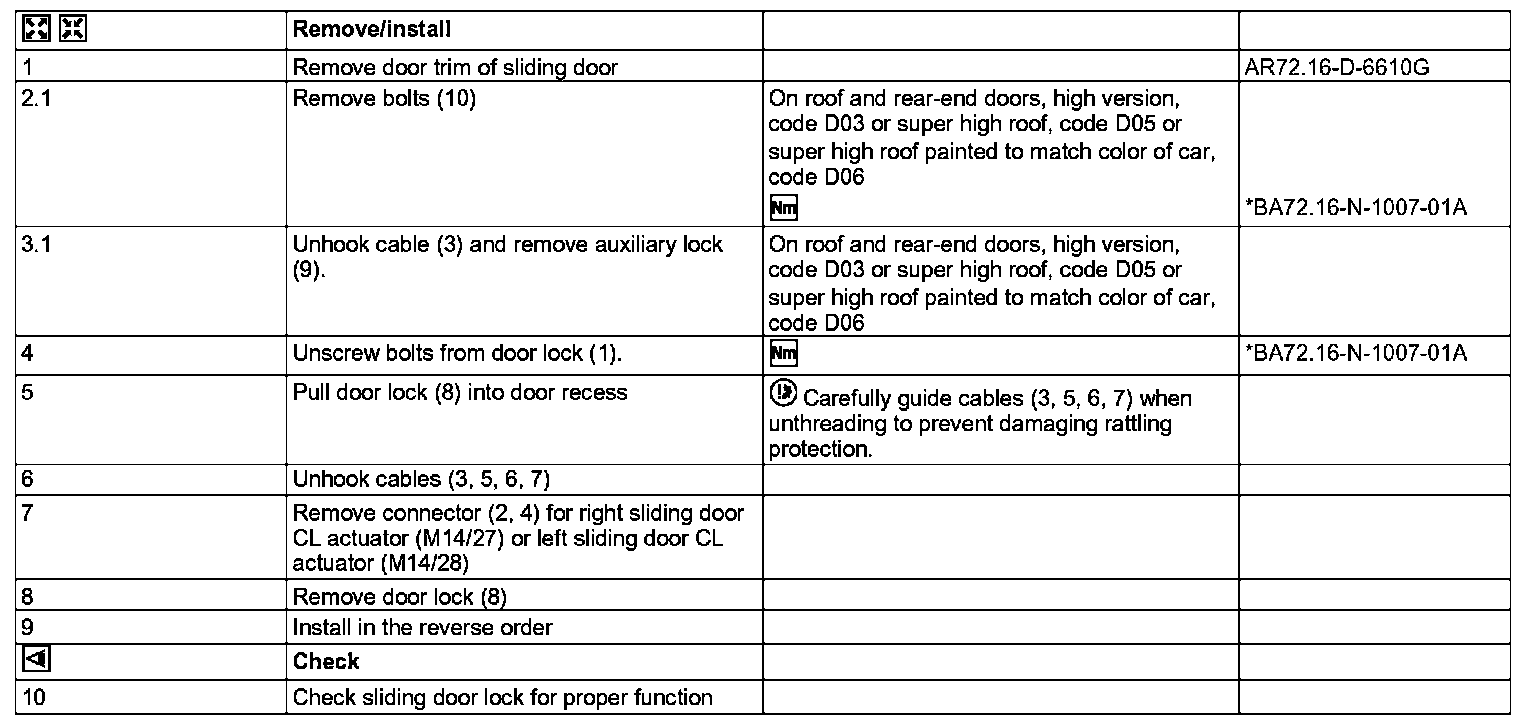

AR72.16-D-4035F Remove/Install Door Lock of Sliding Door

AR72.16-D-4035F Remove/Install Door Lock Of Sliding Door














2 Plug connector
3 Auxiliary lock cable (on high roof)
4 Plug connector
5 Door outer actuation cable
6 Door inner lock cable
7 Inside door opener cable
8 Door lock
9 Auxiliary lock (on high roof)
M14/27 Right sliding door ZV actuator
M14/28 Left sliding door ZV actuator
