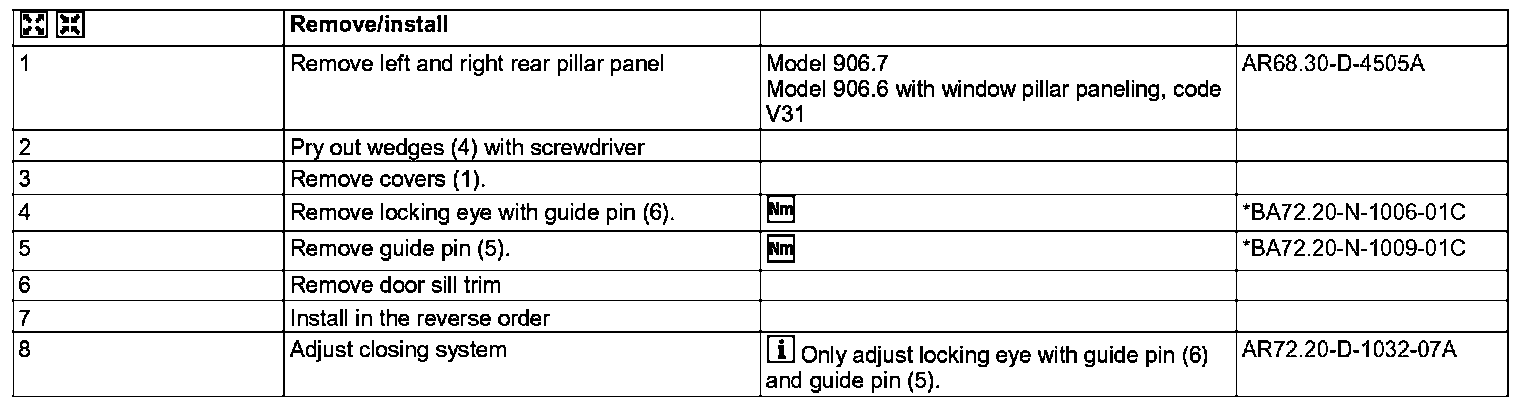

AR68.30-D-3520A Remove/Install Rear Entrance Cover




AR68.30-D-3520A Remove/Install Rear Entrance Cover

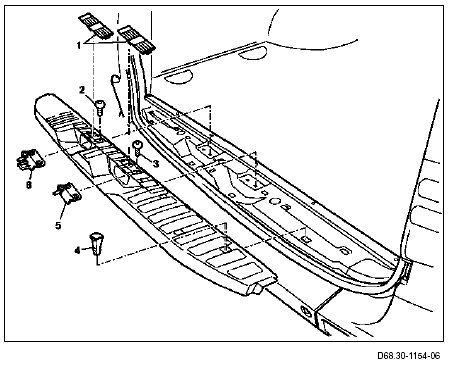

1 Cover
2 Bolt
3 Bolt
4 Wedge
5 Centering pin
6 Locking eye with guide pin
