GF72.29-D-2012HA Actuate Electric Load Component Sliding Door (E-LST), Function

GF72.29-D-2012HA Actuate Electric Load Component Sliding Door (E-LST), Function

- with CODE (T55) Electrical actuation for right sliding door Inside door handle


- with CODE (T56) Electrical actuation for left sliding door Inside door handle

Function requirements for opening:
- No overvoltage or undervoltage
- Inside door handle actuated once
When the inside door handle is actuated with the vehicle locked, the electric load compartment sliding door (E-LST) is unlocked mechanically (self-ejection).

Opening sequence:
- Microswitch in inside door handle to right sliding door control unit (N69/6) or left sliding door control unit (N69/7)
- signal "Open door"

- Right sliding door control unit or left sliding door control unit to opening assist
- signal "Open E-LST lock"

- E-LST lock to right sliding door control unit or left sliding door control unit
- signal "Lock actuated" of right sliding door CL rotary tumbler switch (M14/27s1) or left sliding door CL rotary tumbler switch (M14/28s1)

- Right sliding door control unit or left sliding door control unit to right sliding door drive (M73/1) or left sliding door drive (M73/2)
- The right sliding door drive or left sliding door drive moves the E-LST in the "E-LST open" position

The anti-pinch protection is active during the complete opening path.

Function requirements for closing:
- No overvoltage or undervoltage
- Inside door handle actuated once

Closing sequence:
- Microswitch in inside door handle transmits to the right sliding door control unit or to left sliding door control unit the
- signal "Close door"

- Right sliding door control unit or left sliding door control unit to right sliding door drive or left sliding door drive
- The right sliding door drive or left sliding door drive moves the E-LST in the "E-LST closed" position

- E-LST lock to right sliding door control unit or left sliding door control unit
- signal "Door closed" of right sliding door CL rotary tumbler switch or left sliding door CL rotary tumbler switch to right sliding door control unit or to left sliding door control unit

The anti-pinch protection is active up to the pre-locking position.

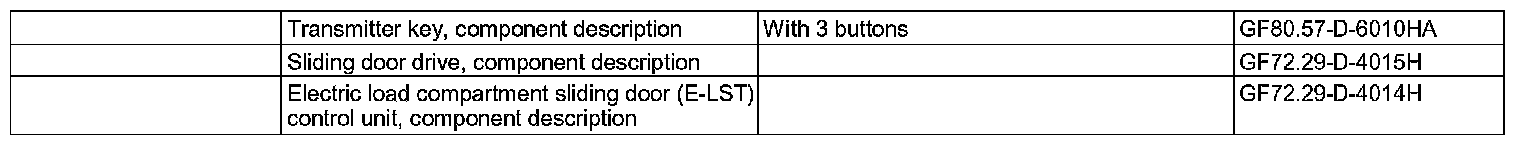

When the child safety lock is activated, it is only possible to open the door with the corresponding inside door handle when the E-LST is closed.
