AR72.20-D-1032E Adjust Rear-End Door
AR72.20-D-1032E Adjust Rear-End Door
AR72.20-D-1032E Adjust Rear-End Door
B

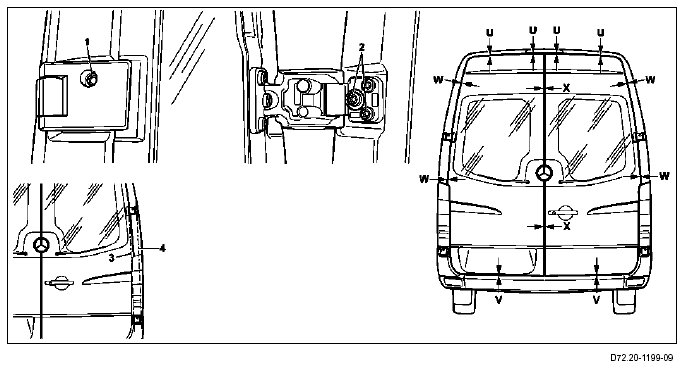

Door gap
129 589 03 21 00, Feeler gauge
