GF72.30-D-4005H Closing Assist Auxiliary Lock (CA), Component Description

GF72.30-D-4005H Closing Assist Auxiliary Lock (CA), Component Description

- with CODE (T50) Electrical closing assist for right sliding door
- with CODE (D03) Roof and rear-end doors, high version


- with CODE (T51) Electrical closing assist for left sliding door
- with CODE (D03) Roof and rear-end doors, high version


- with CODE (T50) Electrical closing assist for right sliding door
- with CODE (D05) Super high roof


- with CODE (T51) Electrical closing assist for left sliding door
- with CODE (D05) Super high roof

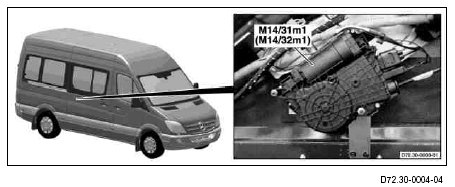

M14/31m1 Right sliding door ZV additional lock motor
M14/32m1 Left sliding door ZV additional lock motor

Location

The right sliding door CL auxiliary lock motor is located in the right sliding door.
The left sliding door ZV additional lock motor is located in the left sliding door.

Task

Ensure reliable closing on large body heights using a cable which actuates an auxiliary lock in the upper area of the sliding door in question.
