Overhaul

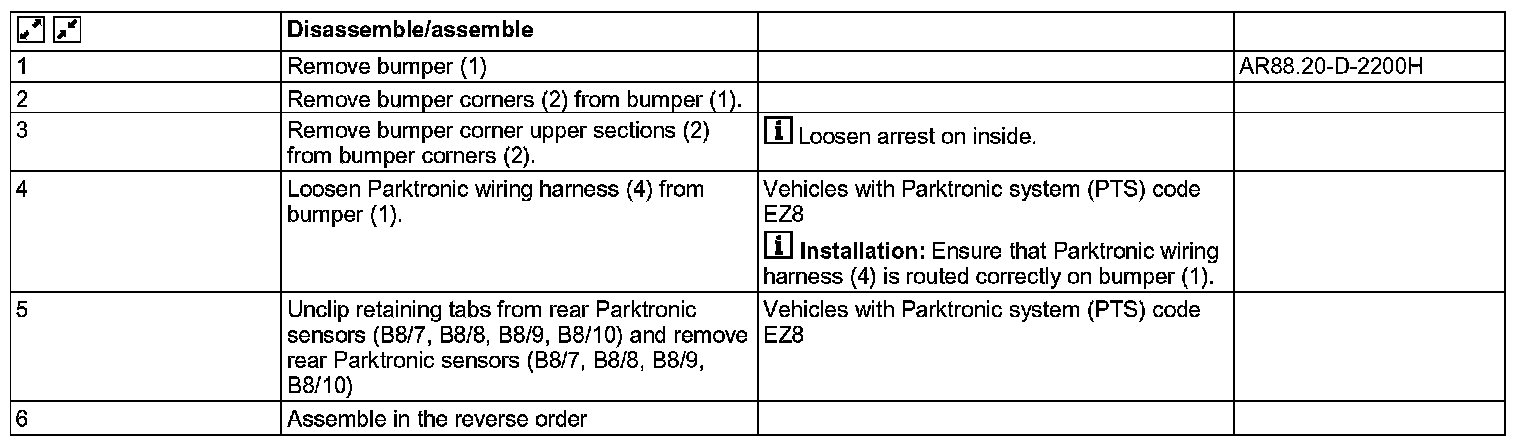

AR88.20-D-2100H Disassemble/Assemble Rear Bumper

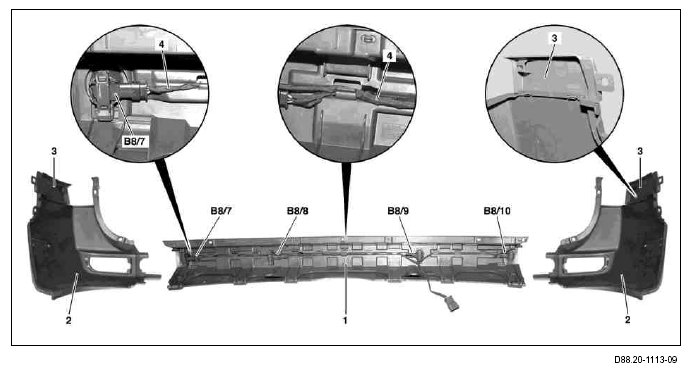

1 Bumper
2 Bumper corners
3 Bumper corner upper sections
4 Parktronic wiring harness
B8/7 Outer right rear Parktronic sensor
B8/8 Inner right rear Parktronic sensor
B8/9 Inner left rear Parktronic sensor
B8/10 Outer left rear Parktronic sensor
