Television / Monitor: Service and Repair

AZ82.60-D-0004-02A Retrofit Video System Monitor

115 589 03 59 00, Long wedge

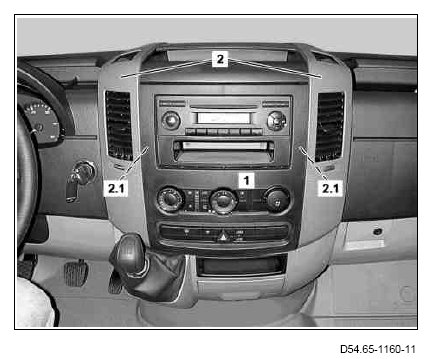

1 Unclip covering (1) using long wedge .
2 Disconnect electrical connector (1) behind covering.
3 Remove bolts (2.1) from air vent coverings (2) and remove air vent coverings (2).

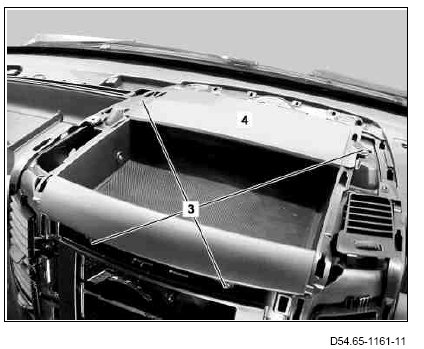

4 Remove bolts (3) from stowage box/tray (4).
5 Remove stowage box/tray (4).
Stowage box/tray (4) is no longer needed.

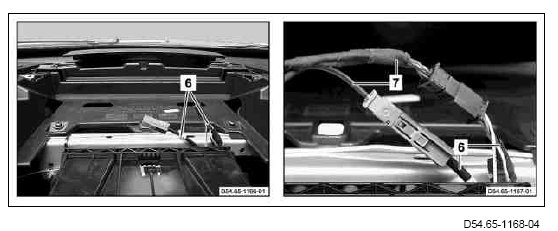

6 Remove supply line and video cable (6) from center console.
7 Connect supply line and video cable (6) to supply line and video cable (7) of video system console.







8 Insert video system console (5).
9 Secure video system console (5) with bolts (3).
10 Clip in air vent coverings (2).
11 Secure air vent coverings (2) with bolts (2.1).
12 Connect electrical connector (1) behind covering.
13 Clip in covering (1).
