Television / Monitor: Description and Operation




GF82.60-D-3117H Video System Monitor, Component Description

- with CODE (FR7) Backup assist preinstallation
- except CODE (EN4) COMAND with TMC interface







A96 Backup camera monitor

Location

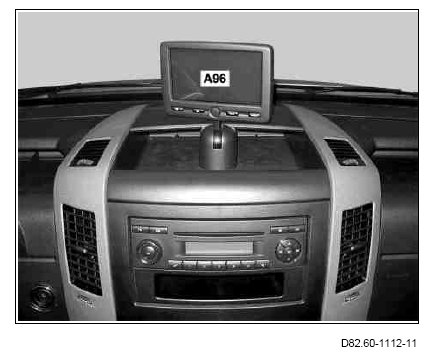

The backup camera monitor is mounted in the center of the cockpit under the windshield.

Task
An instantaneous representation of the rear area is displayed to the driver in the backup camera monitor.
