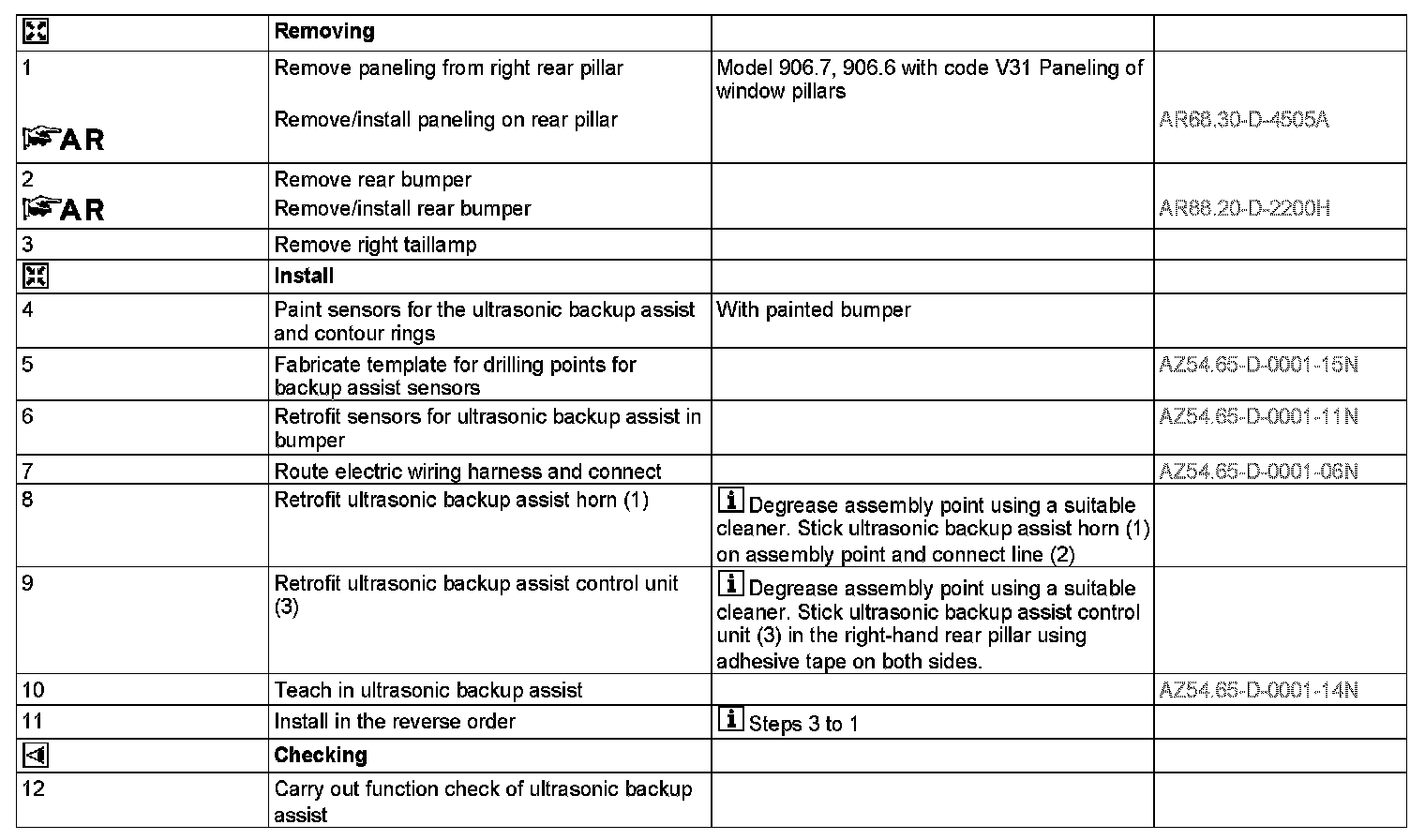

AZ54.65-D-0001NB Retrofit Ultrasonic Backup Assist




AZ54.65-D-0001NB Retrofit Ultrasonic Backup Assist


Without partition wall












1 Ultrasonic backup assist horn
2 Line
3 Ultrasonic backup assist control unit
