AZ54.65-D-0001-13NA Retrofit Horn of Ultrasonic Backup Assist

AZ54.65-D-0001-13NA Retrofit Horn Of Ultrasonic Backup Assist
- Mit Trennwand

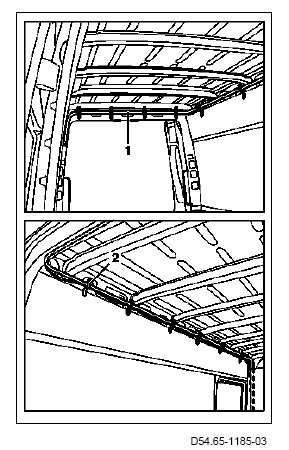

1 Route line (1) for the ultrasonic backup assist horn from the right-hand rear pillar up to the passenger compartment.
2 In the passenger compartment route line (1) for the ultrasonic backup assist horn downwards along the B-pillar.
3 Secure line (1) for the ultrasonic backup assist horn on the vehicle wiring harness using a cable tie (2).







4 Degrease the assembly point using a suitable cleaner.
5 Affix horn (3) at the lower B-pillar.
6 Connect the line (1) to the Ultrasonic backup assist horn (3).
