AZ54.65-D-0001-06N Route Wiring Harness and Connect

AZ54.65-D-0001-06N Route Wiring Harness And Connect







1 Remove line grommet (1) from wiring harness for sensors (2).

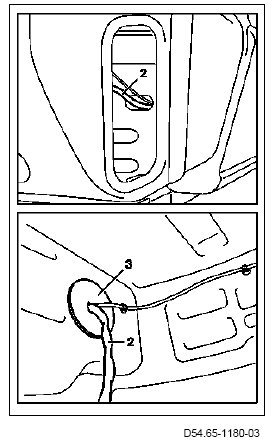

2 Route wiring harness for sensors (2) downwards through the opening in the right rear pillar.







3 Remove cover for positive ventilation (right side)
4 Remove stop plug (3).
5 Route the wiring harness for sensors (2) outwards through the opening.
6 Install stop plug (3).
7 Seal wiring harness for sensors (2) at the stop plug (3)
8 Install cover for positive ventilation (right side)

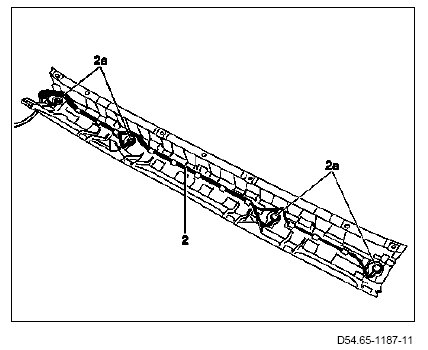

9 Route wiring harness for sensors (2) in the bumper and at the sensors (2a).







10 Route wiring harness for power supply (4) outwards to the right taillamp .
11 Separate the white/blue line (5) from the wiring harness of the taillamp approx. 50 mm upstream of the multiplug.
12 Connect the red line (6) on the wiring harness for the power supply (4) and the line ends of the white/blue lines (5) from the wiring harness for the taillamp together with a solder connector (7).
13 Separate the brown line (9) from the wiring harness for the right taillamp (ground,circuit 31) approx. 50 mm upstream of the multiplug.
14 Connect the black line (8) on the wiring harness for the power supply (4) and the line ends of the brown lines (9) from the wiring harness for the taillamp together with a solder connector (10).







15 Connect the electrical couplings (11) on the control unit (13).
Pay attention to the correct assignment of electrical couplings (11) and connections on the control unit (13) (electrical couplings (11) and connections on the control unit (13) are numbered). If the connections are mixed up, malfunctions occur.

16 Connect the electrical coupling (12, 14).
