Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Panel (906.657) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Forward Looking Camera >> Service and Repair >> AN54.65-D-0030A Retrofit Backup Camera

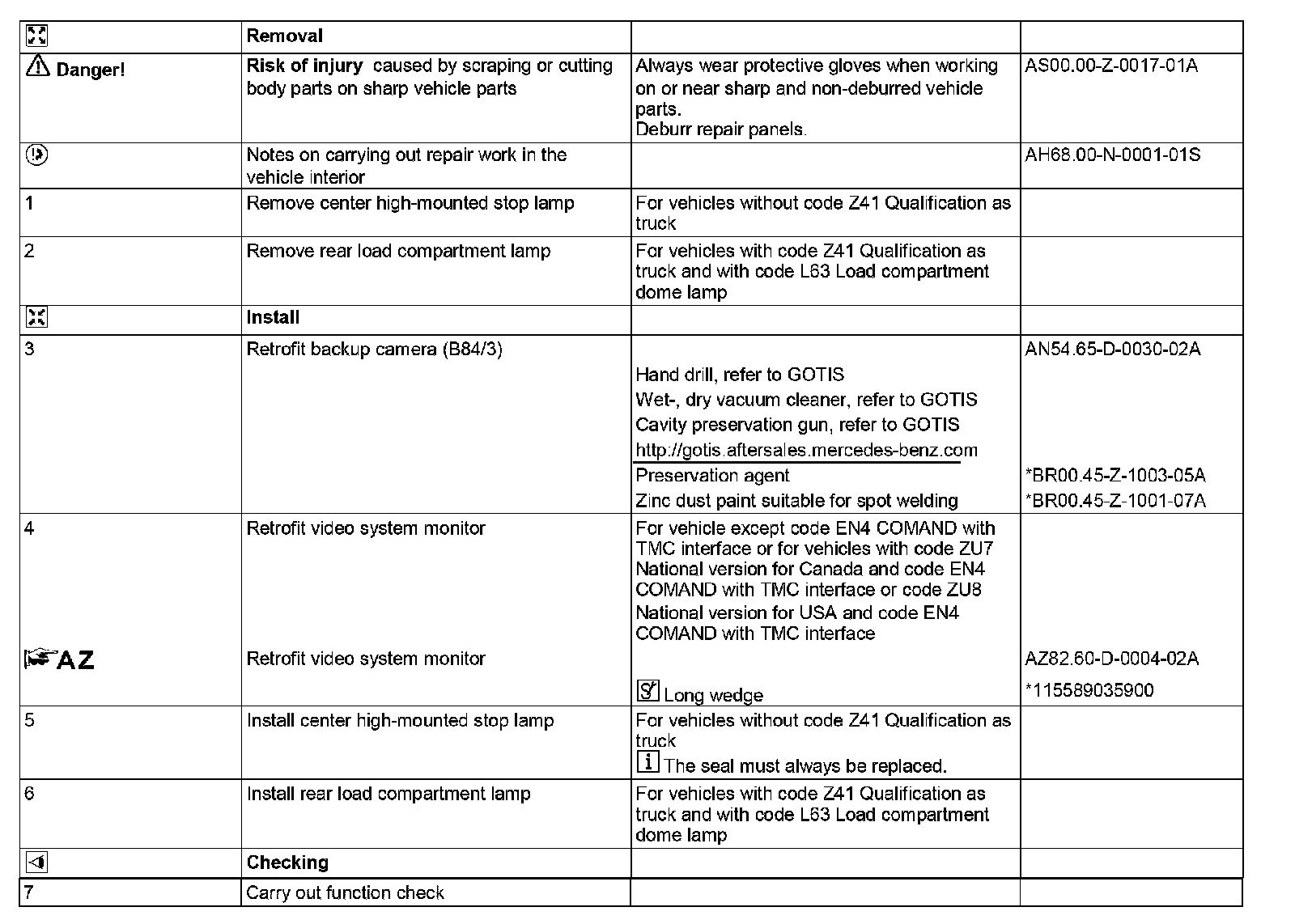

AN54.65-D-0030A Retrofit Backup Camera

AN54.65-D-0030A Retrofit Backup Camera

- with CODE (FR7) Backup assist preinstallation

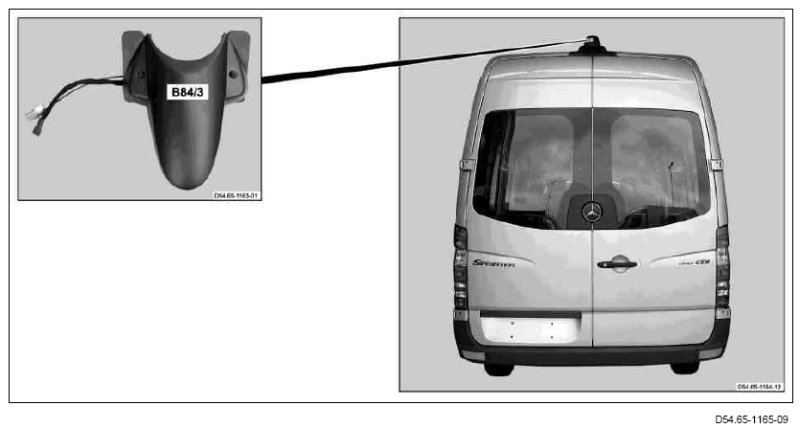

B84/3 Backup camera

115 589 03 59 00, Long wedge
