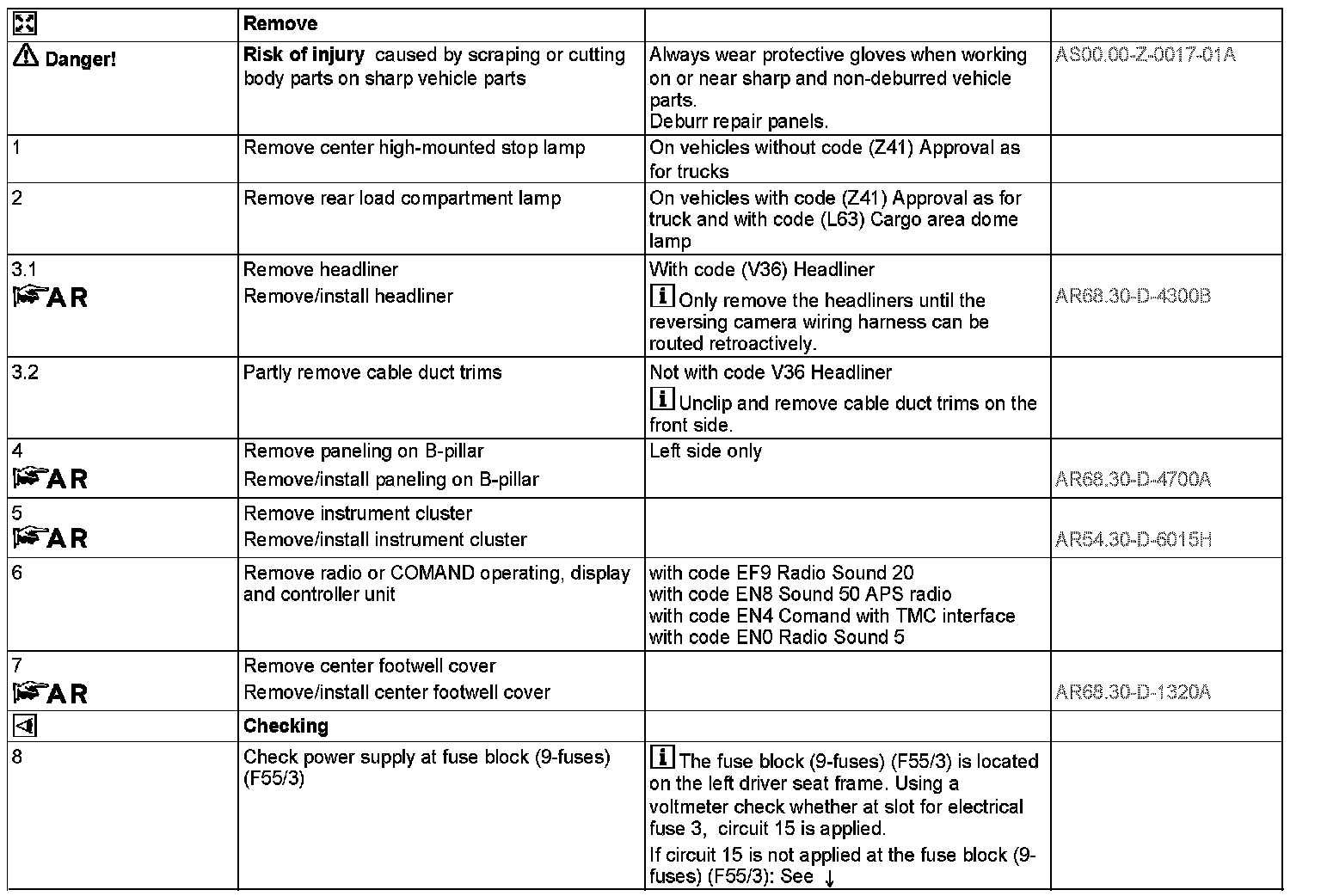

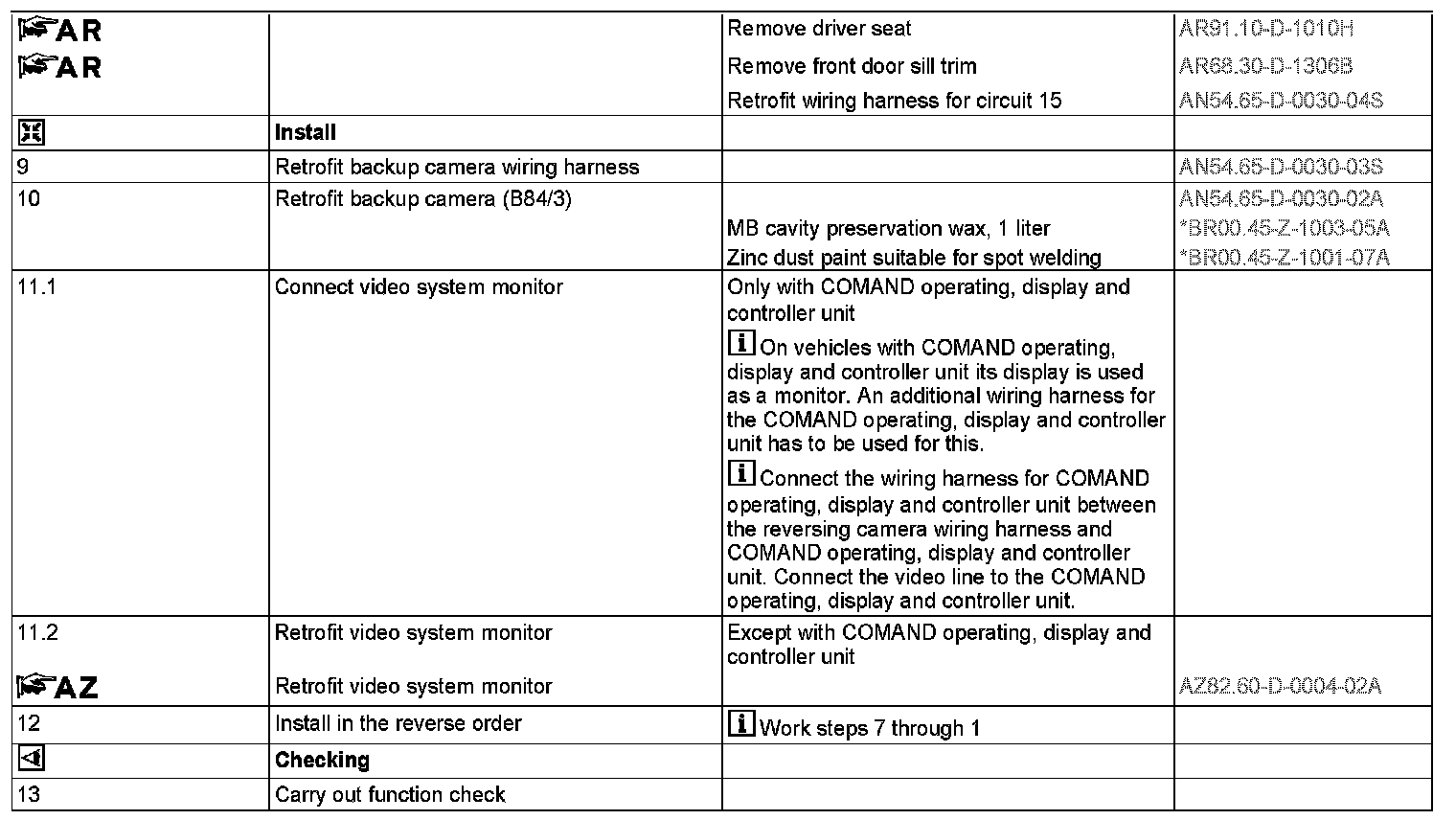

AN54.65-D-0030S Retrofit Backup Camera




AN54.65-D-0030S Retrofit Backup Camera

- except CODE (FR7) Backup assist preinstallation

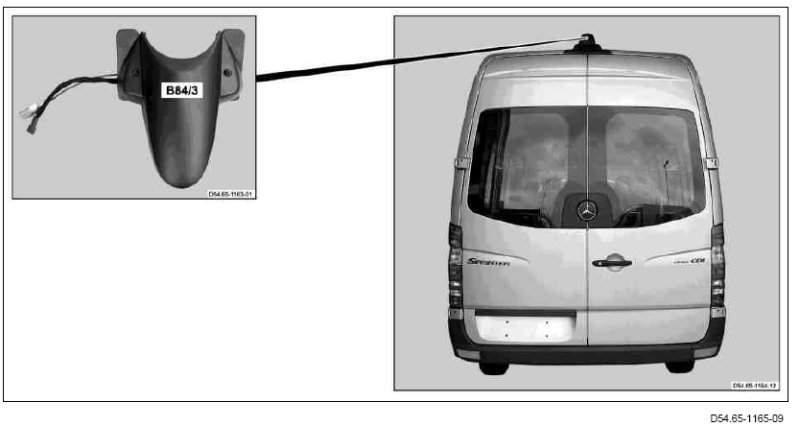

B84/3 Backup camera
