GF82.62-D-4250H Keyless Entry Wire Antenna Component Description

GF82.62-D-4250H Keyless Entry Wire Antenna Component Description

- with CODE (FY9) Keyless entry+slide







Shown on model 906.637 with code D56 Full-width partition wall at C-pillar

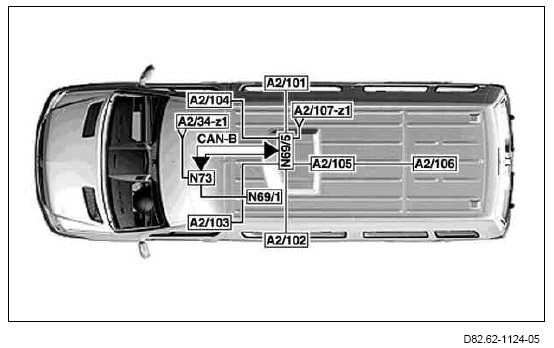

A2/34-z1 Terminal connector for FBS wire antenna
A2/101 Keyless Entry right sliding door antenna
A2/102 Keyless Entry left sliding door antenna
A2/103 Keyless Entry driver door antenna
A2/104 Keyless Entry front passenger door antenna
A2/105 Keyless Entry load compartment antenna 1
A2/106 Keyless Entry load compartment antenna 2
A2/107-z1 Keyless Entry wire antenna terminal connector
N69/1 Driver door control unit
N69/5 Keyless Entry control unit
N73 EIS [EZS] control unit

For models 906.611/631/711/731 the Keyless Entry load compartment antenna 2 is no longer applicable.

Location
The Keyless Entry wire antenna terminal connector is located in the immediate vicinity of the Keyless Entry control unit.

Task
The Keyless Entry antennas are used to receive signals and for identification of a valid transmitter key (A8/1) for operation of the Central locking (ZV) and the left electric load compartment sliding door (E-LST) with code (T56) Electrical actuation for left sliding door or Right electric load compartment sliding door with code (T55) Electrical actuation for right sliding door.
