AR67.10-D-1503-01A Install Windshield

AR67.10-D-1503-01A Install Windshield












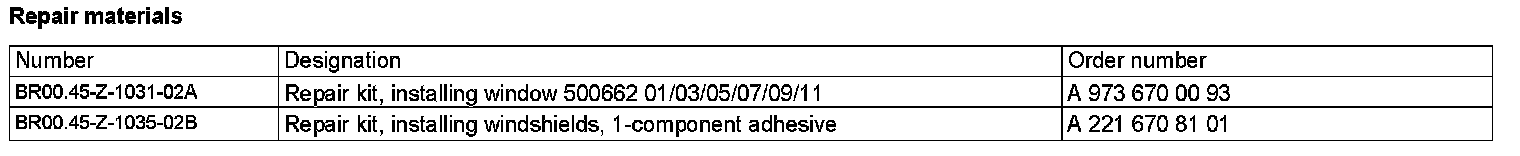

1. Apply glue bead with triangular nozzle directly to sealing frame (2) starting at bottom in center of window.
When applying, the adhesive bead must have the same height as the triangular nozzle cutout. Apply first 5 cm of adhesive bead onto a piece of cardboard, since the components are not yet properly mixed at the beginning. Always apply glue bead to windshield. On 2-component adhesive install windshield within 5 minutes and on 1-component adhesive install within 10 minutes, otherwise the adhesive force of the glue starts to decrease.
- To correctly apply adhesive bead, hold cartridge gun at right angle to window.
Cartridge gun







2. Allow end of adhesive bead to run out parallel to start of adhesive bead.
3. Smooth adhesive bead to obtain uniform shape.







4. Position cup suction tool on window.
Suction lifting device.

5. Lift window and center with adhesive tape (12) above window cutout, carefully lay down and press on.
It is no longer possible to move the window after installation. The window should never by pressed in by more than one person, because the window can break if pressed simultaneously on both sides. Open crank window on vehicle to release air pressure when the doors are closed which could press window outwards.
Curing time:
1-component adhesive at least 2 h
2-component adhesive at least 1 h
